  1. Starters
    2. >
  2. S5426(MITSUBISHI)



S5426(MITSUBISHI)


Code: S5426(MITSUBISHI)
Category: Starters
Manufacturer: MITSUBISHI
Supplier: MITSUBISHI
: M8T81571
PREMIUM LINE

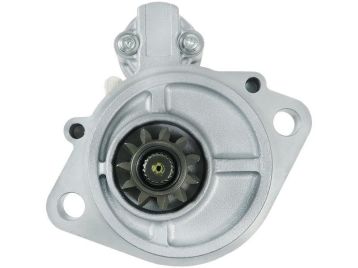

Brand new OEM MITSUBISHI Starter motor


Size a: 95.00 mm
Size b: 22.50 mm
C.1: 14.00 mm
C.2: 14.00 mm
L.1: 259.00 mm
No./teeth: 11
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 121.00 mm
Power: 3.20 kW
Rotation: CW
Voltage: 24 v


Reference number

CodeManufacturer
AI-80093Ainde
UD100979(MITSUBISHI)SAs-pl
115802Cargo
F032115802Cargo
CST35712GSCasco
243-22213Dixie
S-80617Dixie
8971374780Isuzu
8971374781Isuzu
8971374782Isuzu
8972047190Isuzu
8972047191Isuzu
8980723150Isuzu
8980723151Isuzu
71434500Jcb
STM1571Krauf
254344Kuhner
254344MKuhner
M008T80371 MITSUBISHI
M008T80372 MITSUBISHI
M008T80373 MITSUBISHI
M008T80374 MITSUBISHI
M008T81571 MITSUBISHI
M008T81571AMMITSUBISHI
M8T80371 MITSUBISHI
M8T80372 MITSUBISHI
M8T80373 MITSUBISHI
M8T80374 MITSUBISHI
M8T81571 MITSUBISHI
M8T81571AMMITSUBISHI
131.521.112.130Psh
131.521.112.370Psh
S130.038Psh
S143.832Psh
20437217OEReal
130-80174Robert's
130-80174NRobert's
130-80174NOERobert's
6035712.1Sando
MAV377120SIOM
19545NWai / Transpo
STR600039WESTERN STAR
91-27-3515Wilson
MITM8T81571Woodauto
STR71329Woodauto


Usage

BrandModelTypeYearNote
HITACHIZX75US-3 2.24LE201.2008-12.2014
HITACHIZX85USB-3 2.24LE201.2008-12.2014
JOHN DEERE75D 2.24LE201.2008-12.2014
JOHN DEERE85 D 2.24LE201.2008-12.2014
KOBELCO70SR4JG101.2011-12.2013
KOBELCO75SR4LE2X01.2012-12.2014
KOBELCO80CS4JB101.2002-12.2009
KOBELCOSK70SR-24LE2X01.2010-12.2013
KOBELCOSK75SR4LE2X01.2013-12.2015
KOBELCOSK80CS-24JB101.2002-12.2009
KOBELCOSK80CS-24LE2X01.2010-12.2013
KOBELCOSK85CS-3E4LE2X01.2013-12.2016
NEW HOLLANDE135BD04FR(94HP)01.2008-12.2015
NEW HOLLANDE70B4LE2X01.2008-12.2012
NEW HOLLANDE80B4LE2X01.2008-12.2012
Case IhCX 80 2.24LE2X01.2004-12.2014
Case IhCX75SR 2.24LE2X01.2008-12.2015
