S5534S


Code: S5534S
Category: Starters
Manufacturer: MITSUBISHI
Supplier: As-pl
: M9T20571
STANDARD LINE

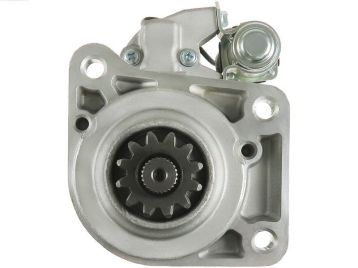

Brand new AS-PL Starter motor


Size a: 100.00 mm
Size b: 45.00 mm
C.1: 11.50 mm
C.2: 11.50 mm
C.3: 11.50 mm
L.1: 320.00 mm
No./teeth: 12
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 103.00 mm
O.2: 77.00 mm
O.3: 142.00 mm
Power: 5.50 kW
Rotation: CW
Voltage: 24 v


Reference number

CodeManufacturer
UD19748SAs-pl
GC46-11000-ACFord
M009T20571MITSUBISHI
M009T21071MITSUBISHI
M9T20571MITSUBISHI
M9T21071MITSUBISHI


Usage

BrandModelTypeYearNote
FORDCARGO II 1842 TFHT601.2016-
FORDCARGO II 254209.2015-
FORDCARGO II 254209.2015-
FORDCARGO II 2542 D09.2015-
FORDCARGO II 3542 D09.2015-
FORDCARGO II 3542 M09.2015-
FORDCARGO II 3542 P09.2015-
FORDCARGO II 3542 T09.2015-
FORDCARGO II 414209.2015-
FORDCARGO II 4142 D09.2015-
FORDCARGO II 4142 M09.2015-
FORDCARGO II 4142 P09.2015-
FORDCARGO II 4142 XD09.2015-
