  2. S6314S



S6314S


Code: S6314S
Category: Starters
Manufacturer: Denso
Supplier: As-pl
: 428000-3070
STANDARD LINE

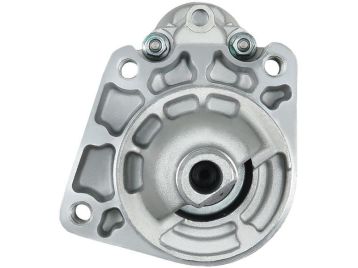

Brand new AS-PL Starter motor


Size a: 82.00 mm
Size b: 8.00 mm
C.1: M10x1.5 mm
C.2: M10x1.5 mm
C.3: M10x1.5 mm
L.1: 237.00 mm
No./teeth: 10
No./mount. holes: 3
No./mount. holes with thread: 3
O.1: 113.00 mm
O.2: 71.00 mm
O.3: 67.50 mm
Power: 1.10 kW
Rotation: CW
Voltage: 12 v


Reference number

CodeManufacturer
S6314S As-pl
UD20506SAs-pl
CST40553Casco
CST40553ASCasco
CST40553ESCasco
CST40553GSCasco
CST40553OSCasco
CST40553RSCasco
04748046AAChrysler
04748046ABChrysler
04748046ACChrysler
04801850AAChrysler
4748046AAChrysler
4748046ABChrysler
4748046ACChrysler
4801850AAChrysler
K04748046AAChrysler
K04748046ABChrysler
K04748046ACChrysler
K04801850AAChrysler
428000-3070 Denso
428000-3071 Denso
428000-3072 Denso
428000-6640 Denso
428000-6641 Denso
S-80395Dixie
R4801850AADodge
STR6672Electrolog
25-5104Elstock
STN6640Krauf
256101Kuhner
336562Logistik
LRS03942Lucas
LRS3942Lucas
830.915.103Psh
830.915.103.460Psh
S135.947Psh
20432355Real
6040553Sando
STX200494Stardax
7B0911023Vw
17949NWai / Transpo
17949RWai / Transpo
91-29-5664Wilson
AM-2272Auto Magneto


Usage

BrandModelTypeYearNote
CHRYSLERGRAND VOYAGER V (RT) 3.3EGV01.2008-
CHRYSLERGRAND VOYAGER V (RT) 3.8EGL10.2007-
CHRYSLERVOYAGER IV (RG, RS) 3.3EGA02.2000-12.2008
CHRYSLERVOYAGER IV (RG, RS) 3.3EGM02.2000-12.2008
CHRYSLERVOYAGER IV (RG, RS) 3.3 AWDEGA02.2000-12.2008
DODGENitro 3.7EKG09.2006-12.2012
DODGENITRO 3.7 4WDEKG09.2006-12.2012
DODGENitro 3.7 V6 4WDEKG06.2007-12.2012
JEEPWRANGLER III (JK) 3.8EGT04.2007-12.2011
JEEPWRANGLER III (JK) 3.8EGT04.2007-
JEEPWRANGLER III (JK) 3.8 RWDEGT10.2007-09.2010
