S6496S
Code: S6496S
Category: Starters
Manufacturer: Denso
Supplier: As-pl
: 438000-2460
STANDARD LINE

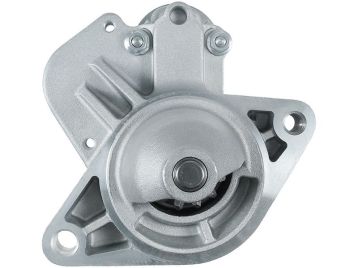

Brand new AS-PL Starter motor
Size a: 73.80 mm
Size b: 13.90 mm
C.1: 11.00 mm
C.2: M10x1.25 mm
L.1: 216.00 mm
No./teeth: 13
No./mount. holes: 2
No./mount. holes with thread: 1
O.1: 123.00 mm
Power: 1.70 kW
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | ||||
| S6496S | As-pl | ||||
| |||||
| UD101243S | As-pl | ||||
| UD104465S | As-pl | ||||
| UD104466S | As-pl | ||||
| AEX1350 | Autoelectro | ||||
| CST40592GS | Casco | ||||
| 3894 | Cevam | ||||
| DRS1318 | DELCO | ||||
| 438000-2460 | Denso | ||||
| |||||
| 438000-3150 | Denso | ||||
| DSN1475 | Denso | ||||
| 25-5286 | Elstock | ||||
| J5212167 | Herth+buss | ||||
| 256488D | Kuhner | ||||
| LRS04123 | Lucas | ||||
| LRS4123 | Lucas | ||||
| 190.962.132.050 | Psh | ||||
| 190.962.132.260 | Psh | ||||
| S143.750 | Psh | ||||
| S145.559 | Psh | ||||
| 20432295OE | Real | ||||
| 6040592.1 | Sando | ||||
| 28100-0Y240 | Toyota | ||||
| 28100-37140 | Toyota | ||||
| DENDSN1475 | Woodauto | ||||
Usage
| Brand | Model | Type | Year | Note |
| TOYOTA | AURIS (_E18_) 1.2 (NRE185_, NRE185R) | 8NR-FTS | 03.2015-12.2018 | |
| TOYOTA | AURIS Estate (_E18_) 1.2 (NRE185_, NRE185R, NRE185 | 8NR-FTS | 03.2015-12.2018 | |
| TOYOTA | C-HR (_X1_) 1.2 (NGX10_, NGX10R) | 8NR-FTS | 10.2016- | |
| TOYOTA | C-HR (_X1_) 1.2 4WD (NGX50_, NGX50R) | 8NR-FTS | 10.2016- | |
| TOYOTA | COROLLA Estate (_E21_) 1.2 (NRE210) | 8NR-FTS | 02.2019- | |
| TOYOTA | COROLLA Hatchback (_E21_, _EA1_, _EH1_) 1.2 (NRE21 | 8NR-FTS | 01.2019- | |
| TOYOTA | RAV 4 IV (_A4_) 2.0 4WD (ZSA44_) | 3ZR-FAE | 04.2015-10.2018 |
