  1. Starters
    2. >
  2. S9043



S9043


Code: S9043
Category: Starters
Manufacturer: Magneton
Supplier: As-pl
: 9142801
STANDARD LINE

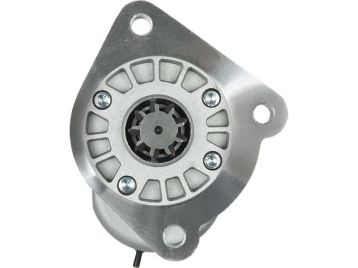

Brand new AS-PL Starter motor


Size a: 89.00 mm
Size b: 22.00 mm
C.1: 11.00 mm
C.2: 11.00 mm
C.3: 11.00 mm
L.1: 235.00 mm
No./teeth: 9
No./teeth (fits into): 9
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 90.00 mm
O.2: 127.00 mm
O.3: 90.00 mm
Power: 2.70 kW
Rotation: CW
Voltage: 12 v


Reference number

CodeManufacturer
STRS0853EFFE
STRS2583EFFE
CGB-21210Ainde
S9043 As-pl
0001359025 Bosch
0001359072 Bosch
0001362025 Bosch
0001362043 Bosch
0001362306 Bosch
0001362314 Bosch
0001369017 Bosch
0986011020Bosch
0986011021Bosch
0986011210Bosch
111332Cargo
F032111332Cargo
CST10235ASCasco
CST10240ASCasco
CST10240ESCasco
130100090735Case
8031 Cevam
8647Cevam
DRS1020DELCO
DRS3696DELCO
33420Eai
33513Eai
STR7826Electrolog
STRX737Electrolog
25-0337Elstock
25-0413Elstock
25-1178Elstock
220307Era
103425Farcom
135902060010Fendt
C514900060100Fendt
F13590206001Fendt
F135902060010Fendt
G514900060100Fendt
X830100006Fendt
X830100009Fendt
X830100009000Fendt
8811020Friesen
CS1173Hc Parts
CS550Hc Parts
8EA726182-001Hella
8EA737722-001Hella
11.130.669 Iskra / Letrika
11.130.706 Iskra / Letrika
AZJ3218 Iskra / Letrika
AZJ3244 Iskra / Letrika
IS0664Iskra / Letrika
IS0669 Iskra / Letrika
IS0706 Iskra / Letrika
12187645Khd
101173Kuhner
101173KKuhner
10550Kuhner
10550KKuhner
LRS00568Lucas
LRS00632Lucas
LRS00639Lucas
LRS568Lucas
LRS632Lucas
LRS639Lucas
943252276Magneti Marelli
MSN697Magneti Marelli
MSR737Magneti Marelli
9142801 Magneton
MS 339Mahle
MS 351Mahle
605720100055Mwm
605720100071Mwm
605720100083Mwm
605720100098Mwm
605720100105Mwm
120-6022Pic
H0641523Poclain
M100R2004SEPrestolite
570.001.093Psh
570.001.093.460Psh
570.001.093.461Psh
S133.650Psh
S143.952Psh
20401042BNReal
20401042ELReal
20401532BNReal
310415Renault
310416Renault
6005003152Renault
6005003153Renault
6005011729Renault
6005701125Renault
7700026780Renault
7700046893Renault
7700501670Renault
7700519797Renault
7700525064Renault
7700525547Renault
7700627394Renault
6010235Sando
6010240Sando
S12BH0278A2Sidat
MAV122350SIOM
MAV122400SIOM
STX210075Stardax
911020Ttv
432569Valeo
432572Valeo
433314Valeo
433315Valeo
D11E120 Valeo
D11E131 Valeo
D11E158 Valeo
18460NWai / Transpo
STR22088Woodauto


Usage

BrandModelTypeYearNote
FENDTFarmer 1 DD325-301.1971-
FENDTFarmer 102, 102 SD325-301.1972-
FENDTFarmer 103 SD225-301.1972-
FENDTFarmer 103 SD226-301.1972-
FENDTFarmer 103 SAD225-301.1972-
FENDTFarmer 104 SD226-301.1976-
FENDTFarmer 104 SAD226-301.1976-
FENDTFarmer 105 SD225-401.1972-
FENDTFarmer 105 SD226-401.1975-
FENDTFarmer 106 SD225-401.1972-
FENDTFarmer 106 SD226-401.1975-
FENDTFarmer 106 SAD225-401.1972-
FENDTFarmer 108 SD226-401.1975-
FENDTFarmer 108 SAD226-401.1975-
FENDTFarmer 305 LSD227-401.1980-
FENDTFavorit 600 LSD227-601.1976-
FENDTFavorit 610 LSD227-601.1979-12.1984
FENDTFavorit 610 LSD226-601.1984-
FENDTFavorit 610 LSAD227-601.1979-12.1984
FENDTFavorit 610 LSAD226-601.1984-
FENDTFavorit 610 SD225-601.1972-12.1976
FENDTFavorit 610 SAD225-601.1972-12.1976
FENDTFavorit 611 SD226-601.1972-12.1976
FENDTFavorit 611 SAD226-601.1972-12.1976
FENDTFavorit 611 SLD226-601.1976-12.1978
FENDTFavorit 611 SLD226-601.1976-12.1978
FENDTFavorit 612 LSD226-601.1983-12.1987
FENDTFavorit 612 LSAD226-601.1988-12.1993
FENDTFavorit 612 SD226-601.1972-12.1976
FENDTFavorit 612 SLD226-601.1976-12.1984
FENDTFavorit 614 LSD226-601.1977-12.1984
FENDTFavorit 614 LSAD226-601.1983-12.1993
FENDTFavorit 614 SAD226-601.1974-12.1976
FENDTGT 231 GTD327-301.1987-
FENDTGT 231 GTD325-301.1987-
RENAULT AGRICULTURE103-12D226-4-
RENAULT AGRICULTURE103-14D226-4-
RENAULT AGRICULTURE110-14D226-6-
RENAULT AGRICULTURE113-12D226-6-
RENAULT AGRICULTURE113-14D227-6-
RENAULT AGRICULTURE1151-4115CV-
RENAULT AGRICULTURE1181-4118CV-
RENAULT AGRICULTURE120-14D226-6-
RENAULT AGRICULTURE120-54D226-6-
RENAULT AGRICULTURE133-14D226-6-
RENAULT AGRICULTURE133-54D226-6-
RENAULT AGRICULTURE145-14D228-6-
RENAULT AGRICULTURE145-54D228-6-
RENAULT AGRICULTURE21520D226-3-
RENAULT AGRICULTURE2261660CV-
RENAULT AGRICULTURE24077D226-3-
RENAULT AGRICULTURE2517368CV-
RENAULT AGRICULTURE25903D226-4-
RENAULT AGRICULTURE27729D226-4-
RENAULT AGRICULTURE29556D226-4-
RENAULT AGRICULTURE30130CV-
RENAULT AGRICULTURE31382D226-4-
RENAULT AGRICULTURE35034D226-4-
RENAULT AGRICULTURE35135CV-
RENAULT AGRICULTURE36136CV-
RENAULT AGRICULTURE42142CV-
RENAULT AGRICULTURE45646CV-
RENAULT AGRICULTURE46048CV-
RENAULT AGRICULTURE46146CV-
RENAULT AGRICULTURE46246V-
RENAULT AGRICULTURE48056CV-
RENAULT AGRICULTURE48651CV-
RENAULT AGRICULTURE48951CV-
RENAULT AGRICULTURE49065CV-
RENAULT AGRICULTURE49682CV-
RENAULT AGRICULTURE49890CV-
RENAULT AGRICULTURE5030CV-
RENAULT AGRICULTURE5033CV-
RENAULT AGRICULTURE5144CV-
RENAULT AGRICULTURE5330CV-
RENAULT AGRICULTURE55155CV-
RENAULT AGRICULTURE551-455CV-
RENAULT AGRICULTURE55655CV-
RENAULT AGRICULTURE5646CV-
RENAULT AGRICULTURE58-14D226-3-
RENAULT AGRICULTURE58-32D226-3-
RENAULT AGRICULTURE58-34D226-3-
RENAULT AGRICULTURE6046CV-
RENAULT AGRICULTURE61-1460CV-
RENAULT AGRICULTURE65-14D226-3-
RENAULT AGRICULTURE65-32D226-3-
RENAULT AGRICULTURE65-34D226-3-
RENAULT AGRICULTURE65165CV-
RENAULT AGRICULTURE651-465CV-
RENAULT AGRICULTURE65265CV-
RENAULT AGRICULTURE65665CV-
RENAULT AGRICULTURE68-1468CV-
RENAULT AGRICULTURE68168CV-
RENAULT AGRICULTURE7046CV-
RENAULT AGRICULTURE70-14D226-4-
RENAULT AGRICULTURE70-32D226-4-
RENAULT AGRICULTURE70-34D226-4-
RENAULT AGRICULTURE75-14D226-4-
RENAULT AGRICULTURE75-32D226-4-
RENAULT AGRICULTURE75-34D226-4-
RENAULT AGRICULTURE751-475CV-
RENAULT AGRICULTURE78178CV-
RENAULT AGRICULTURE8055CV-
RENAULT AGRICULTURE80-14D226-4-
RENAULT AGRICULTURE8251CV-
RENAULT AGRICULTURE85-14D226-4-
RENAULT AGRICULTURE85-32D226-4-
RENAULT AGRICULTURE85-34D226-4-
RENAULT AGRICULTURE85185CV-
RENAULT AGRICULTURE8655CV-
RENAULT AGRICULTURE8958CV-
RENAULT AGRICULTURE89189CV-
RENAULT AGRICULTURE9062CV-
RENAULT AGRICULTURE9065CV-
RENAULT AGRICULTURE90-32D-226-4-
RENAULT AGRICULTURE90-34D-226-4-
RENAULT AGRICULTURE9172CV-
RENAULT AGRICULTURE9262CV-
RENAULT AGRICULTURE9480CV-
RENAULT AGRICULTURE95-14D226-4-
RENAULT AGRICULTURE95195CV-
RENAULT AGRICULTURE9690CV-
RENAULT AGRICULTURE9890CV-
RENAULT AGRICULTURE98198CV-
RENAULT AGRICULTUREVarious ModelsTD226-4-
