S9223


Code: S9223
Category: Starters
Manufacturer: Iskra / Letrika
Supplier: As-pl
: IS1077
STANDARD LINE

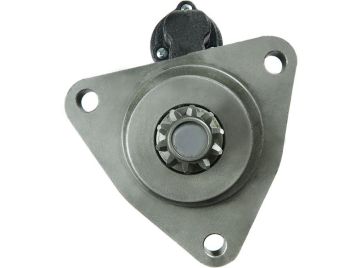

Brand new AS-PL Starter motor


Size a: 92.00 mm
Size b: 49.00 mm
C.1: 13.50 mm
C.2: 13.50 mm
C.3: 13.50 mm
L.1: 327.00 mm
No./teeth: 10
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 127.00 mm
O.2: 127.00 mm
O.3: 127.00 mm
Power: 4.20 kW
Rotation: CW
Voltage: 12 v


Reference number

CodeManufacturer
STRJ3473EFFE
STRJ3483EFFE
CGB-23947Ainde
UD12397SAs-pl
113429Cargo
F032113429Cargo
CST21154GSCasco
193432A01Case
193432A1Case
193432A2Case
A187728Case
8901Cevam
56027703ABChrysler
3283813Cummins
3675245Cummins
3920328Cummins
3921012Cummins
3957589Cummins
10461645DELCO
10465537DELCO
028000-7430 Denso
028000-7431 Denso
128000-4340 Denso
128000-5330 Denso
128000-5331 Denso
128000-5620 Denso
128000-5621 Denso
128000-5623 Denso
128000-6391Denso
128000-9800 Denso
128000-9801 Denso
228000-5600 Denso
228000-5601 Denso
228000-5603 Denso
228000-5620 Denso
228000-5621 Denso
228000-5623Denso
246-30116Dixie
S-8911Dixie
STR79269Electrolog
84146320Fiat
87419387Fiat
11.131.117 Iskra / Letrika
11.131.213Iskra / Letrika
11.131.839 Iskra / Letrika
AZF4611 Iskra / Letrika
AZF4616Iskra / Letrika
AZF4691 Iskra / Letrika
IS1077 Iskra / Letrika
91902C1John Deere
A162469John Deere
A187615John Deere
254658Kuhner
254658MKuhner
254714Kuhner
254714MKuhner
256088Kuhner
MS 101Mahle
MS101 Mahle
191-2212Onan
191-2347Onan
640.513.103Psh
S134.579Psh
S143.974Psh
20419451OEReal
6021154Sando
STX210082Stardax
91-29-5464Wilson
91-29-5464NWilson
LETIS1077Woodauto
MAHMS101Woodauto
STR70310Woodauto


Usage

BrandModelTypeYearNote
NEW HOLLANDTG285 8.3-
Case Ih1620D35801.1985-01.1992
Case Ih1620D43601.1985-01.1992
Case Ih1620D46601.1985-01.1992
Case Ih1640D43601.1985-01.1992
Case Ih1640D46601.1985-01.1992
Case Ih164401.1993-01.1995
Case Ih166601.1993-01.1997
Case Ih166801.1993-01.1997
Case Ih1670DT466C01.1989-01.1991
Case Ih1680D43601.1985-01.1992
Case Ih1680DT46601.1985-01.1992
Case Ih168801.1992-01.1994
Case Ih1690DT466C01.1985-01.1992
Case Ih18226-59001.1986-01.1992
Case Ih18226-83001.1986-01.1992
Case Ih18446-59001.1986-01.1992
Case Ih18446-83001.1986-01.1992
Case Ih18966-59001.1984-01.1989
Case Ih18966-35901.1984-12.1989
Case Ih205501.1990-
Case Ih20556TA-83001.1996-01.1998
Case Ih20906-50401.1978-01.1988
Case Ih20946-50401.1983-01.1988
Case Ih20966-35901.1984-12.1990
Case Ih214401.1994-12.1996
Case Ih21556TA-83001.1996-01.1998
Case Ih216601.1994-12.1996
Case Ih218801.1994-01.1996
Case Ih22906-50401.1978-01.1988
Case Ih2294504BD01.1983-01.1987
Case Ih22946T-590D01.1983-01.1987
Case Ih22946T-59001.1983-01.1987
Case Ih236601.1997-
Case Ih2388TAA83008.2006-10.2010
Case Ih2390504D01.1978-01.1988
Case Ih2394504BD01.1983-01.1987
Case Ih23946T-59001.1983-01.1987
Case Ih239908.2006-10.2010
Case Ih2470504D01.1979-01.1988
Case Ih2590504D01.1980-01.1983
Case Ih2594504BD01.1983-01.1987
Case Ih25946T-590D01.1983-01.1987
Case Ih25946T-59001.1983-01.1987
Case Ih2670504D01.1979-01.1988
Case Ih2688TAA83010.2010-
Case Ih2799TAA32510.2010-
Case Ih279910.2010-
Case Ih28706-67401.1979-01.1988
Case Ih32946-50401.1983-01.1985
Case Ih33946-50401.1985-12.1988
Case Ih35946-50401.1985-12.1988
Case Ih44906-50401.1984-01.1988
Case Ih44946-50401.1984-12.1987
Case Ih46906-50401.1984-12.1990
Case Ih46946-50401.1984-01.1990
Case Ih48906-67401.1984-01.1988
Case Ih48946-67401.1984-01.1990
Case Ih499401.1986-01.1990
Case Ih5088 8.86TAA-830404.2008-
Case Ih5088 8.96TAA-830401.2008-
Case Ih6088 8.96TAA-830404.2008-
Case Ih70 88 8.96TAA-900404.2008-
Case Ih71106-50501.1987-01.1993
Case Ih71206-50501.1987-01.1993
Case Ih71306-50501.1987-01.1993
Case Ih71406-50501.1987-01.1993
Case Ih72106-50501.1993-01.1996
Case Ih72206-50501.1993-01.1996
Case Ih72306-50501.1993-01.1996
Case Ih72406-50501.1993-01.1996
Case Ih72506-50501.1993-01.1996
Case Ih89306-50501.1996-
Case Ih911001.1986-01.1993
Case Ih913001.1986-01.1993
Case Ih9210 8.301.1990-01.1996
Case Ih9230 8.301.1990-01.1996
Case Ih9240 8.301.1990-01.1996
Case Ih9310 8.301.1995-12.2000
Case Ih9330 8.301.1995-12.2000
