  2. S9282S



S9282S


Code: S9282S
Category: Starters
Manufacturer: Iskra / Letrika
Supplier: As-pl
: 11.132.160
STANDARD LINE

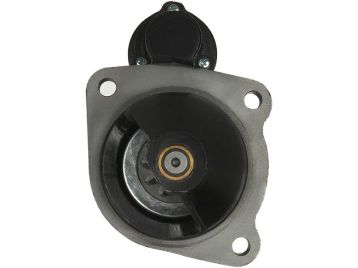

Brand new AS-PL Starter motor


Size a: 89.00 mm
Size b: 29.50 mm
C.1: 10.50 mm
C.2: 10.50 mm
C.3: 10.50 mm
L.1: 296.00 mm
No./teeth: 10
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 90.00 mm
O.2: 127.00 mm
O.3: 90.00 mm
Power: 3.20 kW
Rotation: CW
Voltage: 12 v


Reference number

CodeManufacturer
PRSL8503EFFE
STRL8503EFFE
S9282S As-pl
UD19590SAs-pl
234986A1Case
388186A2Case
STR79067Electrolog
SG9076Ghibaudi
11.132.160 Iskra / Letrika
AZE4245 Iskra / Letrika
IS1377 Iskra / Letrika
714/40158Jcb
72735649Mahle
MS21 Mahle
745011Manitou
388186A1Mccormick
388186A3Mccormick
1447732MIPerkins
37701400Perkins
700.538.103.090Psh
700.538.103.098Psh
700.538.103.310Psh
S134.754Psh
S145.324Psh
182-30455Robert's
S12ML0388A2Sidat
STX200542Stardax
MAHMS21Woodauto


Usage

BrandModelTypeYearNote
AtlasD315201.1970-01.1975
BARBER GREENESA 14101.1976-01.0001
BEDFORDSB01.1975-01.1984
BEDFORDTL 1000 33001.1980-01.1982
BEDFORDTL 1260 33001.1980-01.1982
BEDFORDTL 1630 33001.1982-01.1986
BEDFORDTL 860 33001.1980-01.1982
COMPAIR85DS01.1976-
DENNISDOMINANT6.35401.1979-12.1979
DENNISMUNICIPAL6.35401.1979-
DODGEDOD72 4.04.25604.1979-10.1986
HY-MAC1080V504C01.1973-
HY-MAC1080V8-18501.1973-
HY-MAC1290NH220B01.1973-
HY-MAC1290NH221B-101.1973-
HY-MAC580 C01.1970-
HY-MAC59001.1973-
HY-MAC59501.1973-
HY-MAC59601.1973-
HY-MAC69001.1973-
HY-MAC880C01.1973-
HY-MAC880CV504C01.1973-
HY-MAC880CV8-18501.1973-
HYUNDAIHD300001.1973-
Ingersoll Rand140SL01.1976-01.0001
Ingersoll Rand175SL01.1976-01.0001
Ingersoll Rand250SL01.1976-
Ingersoll RandDR140S01.1976-01.0001
Ingersoll RandDR175S01.1976-01.0001
Ingersoll RandDR250S01.1976-01.0001
JCB111501.1995-01.1997
JCB1251000-6T01.1991-12.1997
JCB3CX-44.23601.1987-12.1993
JCB4 CX-
JCB420 TU6.35401.1982-01.1991
JCB43001.1983-
JCB81101.1985-
JCB81701.1985-
JCB8176.35401.1985-12.1988
JCB8186.35401.1985-12.1990
JCB8206.35401.1985-12.1990
LANDINIBlizzard 4.01004-42-
LANDINIFrutteto 4.01004-42-
LANDINILegend1006-6HR3-
LANDINILegend 1151006-6-
LANDINILegend 120 6.01006-60T-
LANDINILegend 130 6.01006-60T-
LANDINILegend 140 6.01006-60T-
LANDINILegend 145 6.01006-6THR-
LANDINILegend 1601006-6TW-
LANDINILegend 1651006-6THR-
LANDINILegend 180 6.01006-6TA-
LANDINIMini 4.01004-42-
LANDINIMythos 110 6.01006-60-
LANDINITrekker 90F1004-40T-
LANDINIVigneto 4.01004-42-
LaverdaM15001.1971-01.1975
MARSHALLTM 160001.1973-12.1978
MARSHALLTM 170001.1973-12.1978
MARSHALLTM 7501.1971-12.1971
MARSHALLTM 85F01.1973-12.1978
MARSHALLTM 9001.1973-12.1978
MASSEY FERGUSONMF 120001.1971-01.1979
MASSEY FERGUSONMF 20001.1969-12.1992
MASSEY FERGUSONMF 3145-
MASSEY FERGUSONMF 368006.1988-
MASSEY FERGUSONMF 61601006-601.1995-01.1997
MASSEY FERGUSONMF 61701006-601.1996-
MASSEY FERGUSONMF 61801006-6T01.1996-
MASSEY FERGUSONMF 81101006-6T-
MASSEY FERGUSONMF 81201006-6T-
MASSEY FERGUSONMF 81301006-6T-
MASSEY FERGUSONMF 824001.1999-01.0001
MASSEY FERGUSONMF 8250 7.4634DWE-
MASSEY FERGUSONMF 8260D634SBIE-
MASSEY FERGUSONMF 8270645DSBIE01.1999-
MASSEY FERGUSONMF 8280 8.4645.142DSBIE-
MCCORMICKCX 50 2.7-
MCCORMICKMTX 3-
MCCORMICKMTX 4-
NEW HOLLANDT4 (PowerStar) T4.55, T4.6506.2011-
NEW HOLLANDT4 (PowerStar) T4.55, T4.6506.2011-
NEW HOLLANDT4 (PowerStar) T4.75F, T4.85F06.2011-
NEW HOLLANDT4 (PowerStar) T4.75F, T4.85F06.2011-
NEW HOLLANDT4 (PowerStar) T4.75N06.2011-
NEW HOLLANDT4 (PowerStar) T4.75N06.2011-
PERKINSEngine4.44002.1997-03.1997
PERKINSEngine6.66002.1978-03.1997
PERKINSEngine 4.01004-44-
PERKINSEngine 6.01006-60-
RELIANCE MERCURYRM 15001.1977-12.1980
RELIANCE MERCURYRM 4001.1977-12.1980
TerexTLB840 4.4110D-44TA01.1999-
TerexTLB890 4.4110D-44TA01.1999-
Venieri5.23 3.0704-30-
Venieri5.23 C 4.01004-401.1997-12.1999
Venieri5.23 D 4.21004-4201.2001-12.2005
Venieri7.23 4.01004-4T01.1994-12.1998
Venieri7.23 B 4.01004-40T01.1999-12.2005
Case IhCS 6801.2001-12.2004
