S9326S
Code: S9326S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

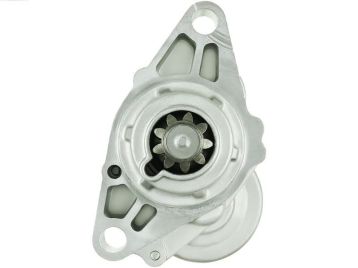

Brand new AS-PL Starter motor
Size a: 70.00 mm
Size b: 59.00 mm
C.1: 14.00 mm
C.2: 14.00 mm
L.1: 257.00 mm
No./teeth: 9
No./teeth (fits into): 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 130.00 mm
Power: 1.60 kW
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| CST33112 | Casco | |
| CST33112AS | Casco | |
| CST33112ES | Casco | |
| CST33112GS | Casco | |
| CST33112OS | Casco | |
| CST33112RS | Casco | |
| 16115 | DELCO | |
| S-80323 | Dixie | |
| 06312-RDB-515RM | Honda | |
| 06312RDB515 | Honda | |
| 31200-RDB-A01 | Honda | |
| 31200-RDB-A01RM | Honda | |
| 6033112 | Sando | |
| STX210211 | Stardax | |
| STX210211R | Stardax | |
| 19016N | Wai / Transpo | |
| 19016R | Wai / Transpo | |
| 91-26-2144 | Wilson |
Usage
| Brand | Model | Type | Year | Note |
| ACURA | TL (UA8, UA9) 3.7 AWD | J37A4 | 01.2012- | |
| HONDA | FR-V (BE) 1.7 (BE1) | D17A2 | 08.2004- | |
| HONDA | STREAM (RN) 1.7 16V (RN1) | D17A2 | 05.2001-09.2006 | |
| HONDA | STREAM (RN) 1.7 16V (RN1) | D17A5 | 05.2001-09.2006 |
