S9583S
Code: S9583S
Category: Starters
Manufacturer: Johnson Electric
Supplier: As-pl
STANDARD LINE

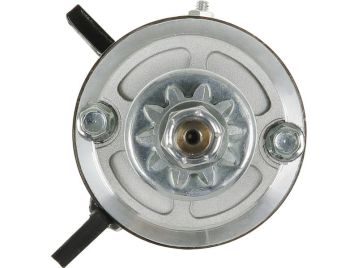

Brand new AS-PL Starter motor
Size b: 44.00 mm
C.1: 9.00 mm
C.2: 8.00 mm
C.3: 10.00 mm
L.1: 227.00 mm
No./teeth: 10
No./mount. holes: 3
No./mount. holes with thread: 0
O.1: 78.00 mm
O.2: 127.00 mm
O.3: 71.00 mm
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |||||||
| 10439023 | Alanko | |||||||
| SAB0066 | Arrowhead | |||||||
| UD13694S | As-pl | |||||||
| 0586285DS00 | Bombardier | |||||||
| 112154 | Cargo | |||||||
| F032112154 | Cargo | |||||||
| 104612 | Farcom | |||||||
| 3110252 | Henkel Parts | |||||||
| STZ1990 | Krauf | |||||||
| 256743 | Kuhner | |||||||
| 5721 | Lester | |||||||
| 120.003.103.200 | Psh | |||||||
| S129.590 | Psh | |||||||
| 4730920 | United Technologies | |||||||
| 4730920M030SM | United Technologies | |||||||
| 4730920MO30SM | United Technologies | |||||||
| 4730940M030SM | United Technologies | |||||||
| 4730940MO30SM | United Technologies | |||||||
| ||||||||
| 5705040M030SM | United Technologies | |||||||
| 5705040MO30SM | United Technologies | |||||||
| SM47309 | United Technologies | |||||||
| ||||||||
| SM57050 | United Technologies | |||||||
| 2-2159 | Wai / Transpo | |||||||
| 2-2159-1 | Wai / Transpo | |||||||
| 5721N | Wai / Transpo | |||||||
| 71-09-5721 | Wilson | |||||||
| 91-09-1034 | Wilson | |||||||
| STR88203 | Woodauto | |||||||
| WOOSTR88203 | Woodauto | |||||||
Usage
| Brand | Model | Type | Year | Note |
| Evinrude | E120TL 1.8 | 110ci-120H.P. | 01.1985-12.1987 | |
| Evinrude | E120TL 2.0 | 122ci-120H.P. | 01.1988-12.1994 | |
| Evinrude | E120TX 1.8 | 110ci-120H.P. | 01.1985-12.1987 | |
| Evinrude | E120TX 2.0 | 122ci-120H.P. | 01.1988-12.1994 | |
| Evinrude | E125ES | 125H.P. | 01.1989-12.1995 | |
| Evinrude | E130CX 2.0 | 122ci-130H.P. | 01.1995-12.1995 | |
| Evinrude | E130TL 2.0 | 122ci-130H.P. | 01.1995-12.1998 | |
| Evinrude | E130TX 2.0 | 122ci-130H.P. | 01.1995-12.1998 | |
| Evinrude | E140CX 2.0 | 122ci-140H.P. | 01.1988-12.1994 | |
| Evinrude | E140TL 1.8 | 110ci-140H.P. | 01.1985-12.1987 | |
| Evinrude | E140TL 2.0 | 122ci-140H.P. | 01.1988-12.1994 | |
| Evinrude | E140TX 1.8 | 110ci-140H.P. | 01.1985-12.1987 | |
| Evinrude | E140TX 2.0 | 122ci-140H.P. | 01.1988-12.1994 | |
| Johnson | 120TL | 110.0ci-120H.P. | 01.1985-12.1987 | |
| Johnson | 120TL | 122.0ci-120H.P. | 01.1988-12.1994 | |
| Johnson | 120TX | 110.0ci-120H.P. | 01.1985-12.1987 | |
| Johnson | 120TX | 122.0ci-120H.P. | 01.1988-12.1994 | |
| Johnson | 130CX | 122.0ci-130H.P. | 01.1995-12.1996 | |
| Johnson | 130PL | 122.0ci-130H.P. | 01.1999-12.2000 | |
| Johnson | 130PX | 122.0ci-130H.P. | 01.1999-12.2000 | |
| Johnson | 130TL | 122.0ci-130H.P. | 01.1995-12.1998 | |
| Johnson | 130TX | 122.0ci-130H.P. | 01.1995-12.1998 | |
| Johnson | 130VX | 122.0ci-130H.P. | 01.2000-12.2000 | |
| Johnson | 135PL | 135H.P. | 01.2001-12.2001 | |
| Johnson | 135VL | 135H.P. | 01.2001-12.2001 | |
| Johnson | 135VX | 135H.P. | 01.2001-12.2001 | |
| Johnson | 140CX | 122.0ci-140H.P. | 01.1988-12.1994 | |
| Johnson | 140TL | 110.0ci-140H.P. | 01.1985-12.1987 | |
| Johnson | 140TL | 122.0ci-140H.P. | 01.1988-12.1994 | |
| Johnson | 140TX | 110.0ci-140H.P. | 01.1985-12.1987 | |
| Johnson | 140TX | 122.0ci-140H.P. | 01.1988-12.1994 |
