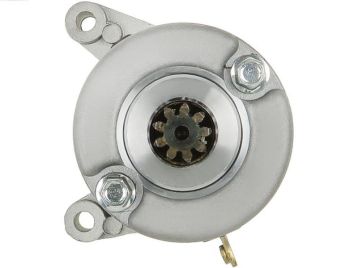

S9650S
Code: S9650S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE
Brand new AS-PL Starter motor
Size b: 41.00 mm
C.1: 6.00 mm
C.2: 6.00 mm
L.1: 147.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 65.00 mm
Power: 0.30 kW
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD19032S | As-pl | |
| CST40580AS | Casco | |
| 10040580AV | Itab Automotive | |
| 18811 | Lester | |
| 20432085BN | Real | |
| 6040580.0 | Sando | |
| 31100-05300 | Suzuki | |
| 31100-05320 | Suzuki | |
| 31100-05500 | Suzuki | |
| 31100-05501 | Suzuki | |
| 31100-05510 | Suzuki | |
| 18811N | Wai / Transpo |
Usage
| Brand | Model | Type | Year | Note |
| Hyosung | XRX XRX | 01.1999- | ||
| Hyosung | XRX XRX (RX-125) | 01.1999-12.2010 | ||
| Hyosung | XRX XRX 125 SM | 01.2010- | ||
| SUZUKI | DR DR 125 S | 01.1991- | ||
| SUZUKI | DR DR 125 S (SF43B) | 01.1991-12.1994 | ||
| SUZUKI | DR DR 125 SE | 01.1997-12.2000 | ||
| SUZUKI | DR DR 125 SE (SF44A) | 01.1991-12.1996 | ||
| SUZUKI | DR DR 125 SM | 01.2008-12.2010 | ||
| SUZUKI | GN GN 125 (NF41A) | 01.1989-12.1999 | ||
| SUZUKI | GN GN 125 (NF41A) | 01.1989-12.1999 | ||
| SUZUKI | GN GN 125 (NF41A) | 01.1989-12.1997 | ||
| SUZUKI | GN GN 125 Classic (NF41A) | 01.1999-12.1999 | ||
| SUZUKI | GN GN 125 Classic (NF41A) | 01.1999-12.1999 | ||
| SUZUKI | RV200 M/C | 01.2017-12.2019 |
