S9717S
Code: S9717S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

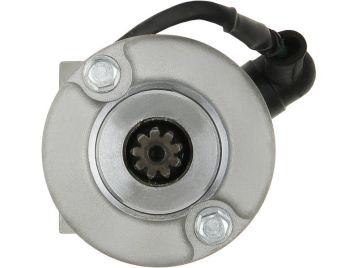

Brand new AS-PL Starter motor
Size b: 40.00 mm
C.1: 7.00 mm
C.2: 7.00 mm
L.1: 156.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 38.00 mm
Power: 0.40 kW
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| 10437994 | Alanko | |
| 437994 | Alanko | |
| UD19061S | As-pl | |
| 428000-1270 | Denso | |
| 428000-3550 | Denso | |
| 105195 | Farcom | |
| 21163-0006 | Kawasaki | |
| 21163-0026 | Kawasaki | |
| 18833 | Lester | |
| 18833N | Wai / Transpo |
Usage
| Brand | Model | Type | Year | Note |
| KAWASAKI | NINJA ( - 750cc) Ninja ZX-6R (ZX636A) | 01.2002-12.2002 | ||
| KAWASAKI | NINJA ( - 750cc) Ninja ZX-6R (ZX636A) | 01.2002-12.2002 | ||
| KAWASAKI | NINJA ( - 750cc) Ninja ZX-6R (ZX636A) | 01.2002-12.2002 | ||
| KAWASAKI | NINJA ( - 750cc) Ninja ZX-6R (ZX636B) | 01.2003-12.2004 | ||
| KAWASAKI | NINJA ( - 750cc) Ninja ZX-6R (ZX636B) | 01.2002-12.2004 | ||
| KAWASAKI | NINJA ( - 750cc) Ninja ZX-6R (ZX636C) | 01.2005-12.2006 | ||
| KAWASAKI | NINJA ( - 750cc) Ninja ZX-6R (ZX636C) | 01.2005-12.2006 | ||
| KAWASAKI | NINJA ( - 750cc) Ninja ZX-6R (ZX636C) | 01.2005-12.2006 | ||
| KAWASAKI | NINJA ( - 750cc) Ninja ZX-6RR (ZX600K) | 01.2003-12.2004 | ||
| KAWASAKI | NINJA ( - 750cc) Ninja ZX-6RR (ZX600K/M) | 01.2004-12.2004 | ||
| KAWASAKI | NINJA ( - 750cc) Ninja ZX-6RR (ZX600N) | 01.2005-12.2005 |
