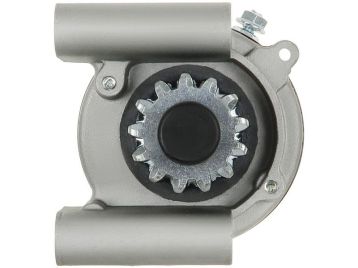

S9765S
Code: S9765S
Category: Starters
Manufacturer: Johnson Electric
Supplier: As-pl
STANDARD LINE
Brand new AS-PL Starter motor
Size b: 18.00 mm
C.1: 10.00 mm
C.2: 9.00 mm
L.1: 184.00 mm
No./teeth: 13
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 68.00 mm
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD19208S | As-pl | |
| 96755 | DELCO | |
| RS41022 | DELCO | |
| 206-07113 | Dixie | |
| MS-698 | Dixie | |
| 104634 | Farcom | |
| 410-21041 | J&n | |
| AM131083 | John Deere | |
| AM132235 | John Deere | |
| 5225040 | Johnson Electric | |
| 6560040MO30SM | Johnson Electric | |
| 6734620MO30SM | Johnson Electric | |
| 12-098-015 | Kohler | |
| 12-098-015S | Kohler | |
| 12-098-04 | Kohler | |
| 12-098-08 | Kohler | |
| 12-098-13 | Kohler | |
| 12-098-13S | Kohler | |
| 12-098-15 | Kohler | |
| 12-098-15S | Kohler | |
| 12-098-20 | Kohler | |
| 12-098-22 | Kohler | |
| 12-098-22-S | Kohler | |
| 12-098-22S | Kohler | |
| 255940 | Kuhner | |
| 88214952 | Powermax | |
| 630.557.132.200 | Psh | |
| S134.126 | Psh |
Usage
| Brand | Model | Type | Year | Note |
| Cub Cadet | 1515 | 15H.P. | 01.2002-12.2002 | |
| Cub Cadet | 1517 | 17H.P. | 01.2002-12.2002 | |
| Cub Cadet | LT1018LE | 18H.P. | 01.2004-12.2004 | |
| Cub Cadet | Z42 | 15H.P. | 01.1997-12.1999 | |
| JOHN DEERE | 7G18 | 18H.P. | 01.2009-12.2011 | |
| JOHN DEERE | 7G18 | CV943T-15H.P. | 01.2005-12.2009 | |
| JOHN DEERE | L110 | 17.5H.P. | 01.2003-12.2005 | |
| JOHN DEERE | LT133 | 13H.P. | - | |
| JOHN DEERE | LT150 | 15H.P. | - | |
| JOHN DEERE | LT155 | 15H.P. | - | |
| JOHN DEERE | LT160 | 16H.P. | - | |
| JOHN DEERE | LTR155 | 15H.P. | - | |
| JOHN DEERE | Sabre 17.542HS | 01.2002-12.2003 | ||
| JOHN DEERE | SST15 | CVS15S-15H.P. | 01.2001-12.2004 | |
| JOHN DEERE | STX46 | 15H.P. | 01.1995-12.2005 | |
| NEW HOLLAND | MY16 | 16H.P. | 01.2004-12.2014 | |
| NEW HOLLAND | MZ17H | 18H.P. | - | |
| Scotts | S2048 | 20H.P. | 01.1999-12.2009 | |
| Toro | 18-52ZX TimeCutter ZX | 18H.P. | 01.2003-12.2004 | |
| Toro | 265-6 | 15H.P. | 01.1996-12.2000 | |
| Toro | 265-H | 15H.P. | 01.1996-12.2002 | |
| Toro | 266-H | 16H.P. | 01.2001-12.2002 | |
| Toro | 266-HE | 16H.P. | 01.2001-12.2002 | |
| Toro | 410 | 460cc | 01.2005-12.2005 | |
| Toro | 416XT | 16H.P. | 01.2003-12.2004 | |
| Toro | MZ17H | 18H.P. | 01.2006-12.2006 | |
| Toro | Wheel Horse 265-6 | CV15S-PS41550-15H.P. | 01.1998-12.2008 | |
| Toro | Wheel Horse 265-H | 15H.P. | 01.1998-12.2008 | |
| Toro | Z17-44 TimeCutter Z | 17H.P. | 01.2001-12.2002 | |
| Toro | Z17-52 TimeCutter Z | 17H.P. | 01.2001-12.2002 | |
| Toro | ZX440 TimeCutter | 490cc | 01.2006-12.2008 |
