S9772S
Code: S9772S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

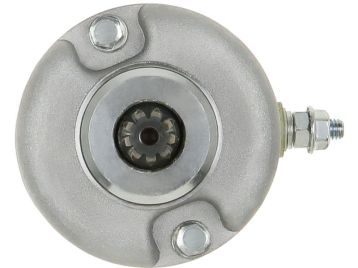

Brand new AS-PL Starter motor
Size b: 42.00 mm
C.1: 6.50 mm
C.2: 6.50 mm
L.1: 171.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 34.00 mm
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| 10439178 | Alanko | |
| 439178 | Alanko | |
| SMU0210 | Arrowhead | |
| UD19221S | As-pl | |
| 108720 | Farcom | |
| 255791 | Kuhner | |
| 18763 | Lester | |
| 18763N | Wai / Transpo | |
| 71-26-18763 | Wilson | |
| 5EB-81890-00 | Yamaha | |
| 5EB-81890-00-00 | Yamaha |
Usage
| Brand | Model | Type | Year | Note |
| YAMAHA | FZ FZ 6 (RJ07) | 01.2003-12.2006 | ||
| YAMAHA | FZ FZ 6 Fazer (RJ07) | 01.2004-12.2006 | ||
| YAMAHA | FZ FZ 6 Fazer (RJ14) | 01.2007-12.2008 | ||
| YAMAHA | FZ FZ 6 S2 Fazer (RJ14) | 01.2008-12.2010 | ||
| YAMAHA | YZF-R YZF-R6 (RJ03) | 01.1999-12.2002 | ||
| YAMAHA | YZF-R YZF-R6 (RJ03) | 01.1999-12.2000 | ||
| YAMAHA | YZF-R YZF-R6 (RJ05) | 01.2003-12.2004 | ||
| YAMAHA | YZF-R YZF-R6 (RJ09) | 01.2004-12.2005 | ||
| YAMAHA | YZF-R YZF-R6 (RJ09) | 01.2004-12.2005 | ||
| YAMAHA | YZF-R YZF-R6 S (RJ09) | 11.2005-12.2007 |
