S9836S
Code: S9836S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

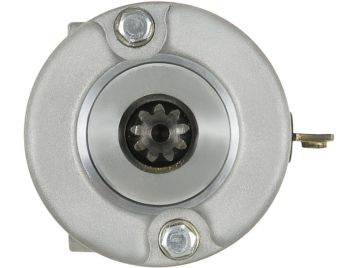

Brand new AS-PL Starter motor
Size b: 37.00 mm
C.1: 6.50 mm
C.2: 6.50 mm
L.1: 157.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 48.00 mm
Power: 0 kW
Rotation: ACW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD102725S | As-pl | |
| 30912 | Lester | |
| 30912N | Wai / Transpo | |
| 1WD-H1800-00 | Yamaha | |
| 1WD-H1800-00-00 | Yamaha | |
| 1WD-H1800-02 | Yamaha | |
| 1WD-H1800-02-00 | Yamaha |
Usage
| Brand | Model | Type | Year | Note |
| YAMAHA | MT MT-03 | 01.2016- | ||
| YAMAHA | YZF-R YZF-R3 (RH25, RH07, RH12) | 01.2015- | ||
| YAMAHA | YZF-R YZF-R3 ABS | 09.2015- | ||
| YAMAHA | YZF-R3 Monster | 321cc | 01.2020- | |
| YAMAHA | YZF-R3 Moto GP | 321cc | 01.2017- | |
| YAMAHA | YZF-R3 Moto GP Edition | 321cc | 01.2015- | |
| YAMAHA | YZF-R3 Moto GP Edition | 321cc | 01.2019- |
