S9860S
Code: S9860S
Category: Starters
Manufacturer: Mitsuba
Supplier: As-pl
STANDARD LINE

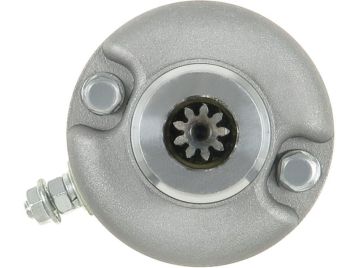

Brand new AS-PL Starter motor
Size b: 34.50 mm
C.1: 6.50 mm
C.2: 7.00 mm
L.1: 159.00 mm
No./teeth: 9
No./mount. holes: 2
No./mount. holes with thread: 0
O.1: 37.00 mm
Rotation: CW
Voltage: 12 v
Reference number
| Code | Manufacturer | |
| UD102684S | As-pl | |
| 30933 | Lester | |
| 1A009964R | Piaggio | |
| 1D001434 | Piaggio | |
| 1D001647 | Piaggio | |
| 58173R | Piaggio | |
| 58294R | Piaggio | |
| 30933N | Wai / Transpo |
Usage
| Brand | Model | Type | Year | Note |
| Aprilia | SCARABEO Scarabeo 250 (TD) | 01.2004-12.2006 | ||
| Aprilia | SPORTCITY Sportcity CUBE 250 (VB) | 05.2006- | ||
| PIAGGIO | MP3 MP3 250 RL (M47) | 01.2007-12.2013 | ||
| Vespa | GTS GTS 250 (ZAPM45100, ZAPM45101) | 06.2005-12.2012 | ||
| Vespa | GTS GTS 250 ABS (ZAPM45100, ZAPM45101) | 06.2005-12.2012 | ||
| Vespa | GTS GTS 250 i.e. | 06.2005-12.2012 | ||
| Vespa | GTS GTS 300 ABS | 06.2014-10.2016 | ||
| Vespa | GTS GTS 300 ABS (MA3C) | 10.2016- | ||
| Vespa | GTS GTS 300 Super (ZAPM452) | 04.2008- | ||
| Vespa | GTS GTS 300 Super Sport | 01.2010- | ||
| Vespa | GTV GTV 250 | 01.2007-09.2012 | ||
| Vespa | GTV GTV 300 i.e | 01.2007-09.2012 |
