SBH4016P


Code: SBH4016P

Category: Starter brush holders

Manufacturer: Magneti Marelli

Supplier: As-pl

PREMIUM LINE

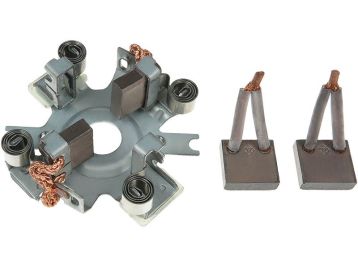

Brand new AS-PL Starter motor brush holder



G.1: 8.30 mm

H.1: 34.00 mm

H.2: 25.60 mm

I.d.1: 18.40 mm

O.1: 54.50 mm

O.d.1: 92.00 mm

Matching brush set: SB9002



Reference number

CodeManufacturer
PSP00273EFFE
UD19905SBHAs-pl
134670Cargo
CBH30602ASCasco
BHS9005Electrolog
PAPA303Ghibaudi
PAPA316Ghibaudi
7.7398.1Ika
SHE4670Krauf
72165001Magneti Marelli
72165001000Magneti Marelli
1012063Powermax
81012063Powermax
21204206BNReal
SBH30602.0Sando
69-9307Wai / Transpo
BHD49632Woodauto


Usage

BrandModelTypeYearNote
MAGNETI MARELLI63216701starter motors
MAGNETI MARELLI63216702starter motors
MAGNETI MARELLI63216703starter motors
MAGNETI MARELLI63216704starter motors
MAGNETI MARELLI63216706starter motors
MAGNETI MARELLI63216707starter motors
MAGNETI MARELLI63216708starter motors
MAGNETI MARELLI63216710starter motors
MAGNETI MARELLI63216725starter motors
MAGNETI MARELLI63216726starter motors
MAGNETI MARELLI63216727starter motors
MAGNETI MARELLI63216731starter motors
MAGNETI MARELLI63216733starter motors
MAGNETI MARELLI63216738starter motors
MAGNETI MARELLI63216740starter motors
MAGNETI MARELLI63216741starter motors
MAGNETI MARELLI63216747starter motors
MAGNETI MARELLI63216748starter motors
MAGNETI MARELLI63216763starter motors
