SD0034


Code: SD0034

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

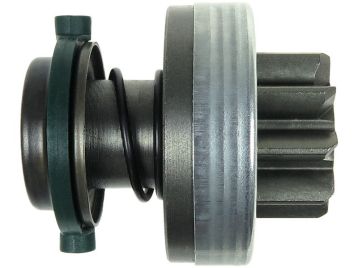

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 62.00 mm

L.2: 16.00 mm

Teeth: 9

Splines: 10

O.d.1: 55.00 mm

O.d.2: 35.60 mm

Rotation: CW



Reference number

CodeManufacturer
UD01869SFAs-pl
9002336283Bosch
9003336283Bosch
9009996289Bosch
F000AL1881Bosch
131996Cargo
135527Cargo
333514Cargo
CQ2010018Cq
DRV1293Electrolog
225393Era
9939710Fiat
1621Ghibaudi
42531397Iveco
SDB1996Krauf
SDB9996Krauf
940113170282Magneti Marelli
1013461Powermax
81013461Powermax
19-283Stemot
29-51-14Visnova
54-91133Wai / Transpo
SDV38169Woodauto
0875Zen
1.01.0875.0Zen
ZN0875Zen


Usage

BrandModelTypeYearNote
As-plS0018starter motors
As-plS0064starter motors
As-plS0148starter motors
BOSCH0001217174starter motors
BOSCH0001218014starter motors
BOSCH0001218019starter motors
BOSCH0001218024starter motors
BOSCH0001218101starter motors
BOSCH0001218102starter motors
BOSCH0001218103starter motors
BOSCH0001218151starter motors
BOSCH0001218154starter motors
BOSCH0001218159starter motors
BOSCH0001218163starter motors
BOSCH0001218164starter motors
BOSCH0001218167starter motors
BOSCH0001218174starter motors
BOSCH0001218703starter motors
BOSCH0001218754starter motors
BOSCH0001218759starter motors
BOSCH0001218763starter motors
BOSCH0001218764starter motors
BOSCH0001218767starter motors
BOSCH0001218774starter motors
