  5. SD0083P



SD0083P


Code: SD0083P

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

PREMIUM LINE

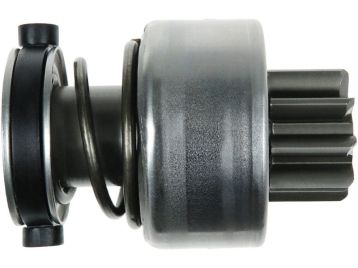

Brand new AS-PL Starter motor drive



I.d.1: 14.30 mm

L.1: 84.60 mm

L.2: 22.50 mm

Teeth: 9

Splines: 10

O.d.1: 58.80 mm

O.d.2: 34.70 mm

Rotation: CW



Reference number

CodeManufacturer
0952236000Bosch
2006209554Bosch
6033AD0442Bosch
6033AD0462Bosch
6033AD3006Bosch
6033AD3108Bosch
6033AD3111Bosch
6033AD3244Bosch
6033AD3850Bosch
6033AD4034Bosch
6033AD4148Bosch
9002336236Bosch
139056Cargo
139056ZCargo
333202Cargo
CDR10102Casco
CDR10102ASCasco
CQ2010033Cq
5460-2301Dixie
DRV1143Electrolog
DRV1200Electrolog
225491Era
F716900060030Fendt
2204 Ghibaudi
4.5040.1Ika
01319806Khd
1319755Khd
1319806Khd
SDB1056Krauf
SDB8056Krauf
940113020358Magneti Marelli
47004Meat & Doria
0011511813Mercedes
0011513213Mercedes
0011514113Mercedes
A0011514113Mercedes
1016932Powermax
81016932Powermax
861206Prestolite
060.551.503Psh
SDR10102Sando
SDR10102.0Sando
13-462Stemot
SD-2190Unipoint
52-42-79Visnova
54-91130Wai / Transpo
54-91130-1Wai / Transpo
54-91130-ZENWai / Transpo
61-15-6593Wilson
SDV38181Woodauto
1.01.1038.0Zen
1038 Zen
ZN1038Zen


Usage

BrandModelTypeYearNote
As-plS0037starter motors
As-plS0070starter motors
As-plS0079
As-plS0129
BOSCH0001230001starter motors
BOSCH0001230006starter motors
BOSCH0001230007starter motors
BOSCH0001230012starter motors
BOSCH0001230013starter motors
BOSCH0001230014starter motors
BOSCH0001230027starter motors
BOSCH0001231002starter motors
BOSCH0001231003starter motors
BOSCH0001231005starter motors
BOSCH0001231011starter motors
BOSCH0001231018starter motors
BOSCH0001231032starter motors
BOSCH0001231033starter motors
BOSCH0001231133starter motors
