  5. SD0086

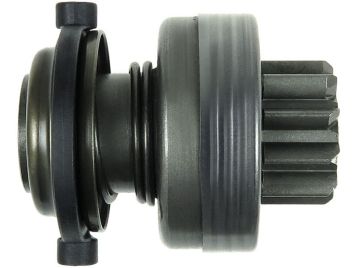

SD0086


Code: SD0086

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

Brand new AS-PL Starter motor drive



I.d.1: 12.00 mm

L.1: 58.50 mm

L.2: 15.00 mm

Teeth: 10

Splines: 10

O.d.1: 45.50 mm

O.d.2: 27.70 mm

Rotation: CW



Reference number

CodeManufacturer
1006209538Bosch
1006209539Bosch
1006209546Bosch
1006209691Bosch
132205Cargo
132205ZCargo
139846Cargo
333196Cargo
CQ2010704Cq
5460-1015Dixie
225232Era
225260Era
9940740Fiat
1612Ghibaudi
SDB1205Krauf
SDB9205Krauf
940113020191Magneti Marelli
940113170191Magneti Marelli
1012252Powermax
81012252Powermax
060.000.099Psh
11-538Stemot
54-9156Wai / Transpo
54-9156-1Wai / Transpo
SDV38033Woodauto
SDV38083Woodauto
0630Zen
1.01.0575.0Zen
1.01.0630.0Zen
ZN0630Zen


Usage

BrandModelTypeYearNote
BOSCH0001110003starter motors
BOSCH0001110005starter motors
BOSCH0001110016starter motors
BOSCH0001110024starter motors
BOSCH0001110025starter motors
BOSCH0001110026starter motors
BOSCH0001110039starter motors
BOSCH0001110053starter motors
BOSCH0001110054starter motors
BOSCH0001110055starter motors
BOSCH0001110075starter motors
BOSCH0001110078starter motors
BOSCH0001110079starter motors
BOSCH0001110082starter motors
BOSCH0001110089starter motors
BOSCH0001110091starter motors
BOSCH0001110092starter motors
BOSCH0001110095starter motors
BOSCH0001110102starter motors
BOSCH0001110113starter motors
BOSCH0001110114starter motors
BOSCH0001110115starter motors
BOSCH0001110124starter motors
BOSCH0001110125starter motors
