SD0109


Code: SD0109

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

STANDARD LINE

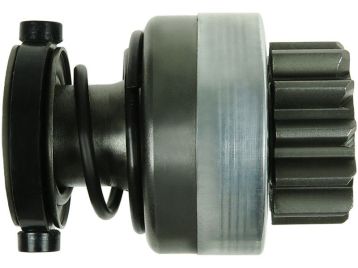

Brand new AS-PL Starter motor drive



I.d.1: 14.20 mm

L.1: 83.50 mm

L.2: 21.20 mm

Teeth: 12

Splines: 10

O.d.1: 61.20 mm

O.d.2: 46.30 mm

Rotation: CW



Reference number

CodeManufacturer
6033AD0129Bosch
6033AD4243Bosch
233722Cargo
333500Cargo
CQ2010133Cq
DRV1201Electrolog
225539Era
2232Ghibaudi
SDB1722Krauf
940113020394Magneti Marelli
AMB0394Magneti Marelli
1013684Powermax
81013684Powermax
861207Prestolite
13-129Stemot
62-42-00Visnova
54-91157Wai / Transpo
54-91157-1Wai / Transpo
54-91157-ZENWai / Transpo
BOS6033AD4243Woodauto
SDV3913Woodauto
SDV3918Woodauto
1.01.1160.0Zen
1160Zen
ZN1160Zen
18646Znp


Usage

BrandModelTypeYearNote
As-plS0108starter motors
As-plS0809Sstarter motors
BOSCH0001231004starter motors
BOSCH0001263012starter motors
