SD0120
Code: SD0120
Category: Starter drives
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE

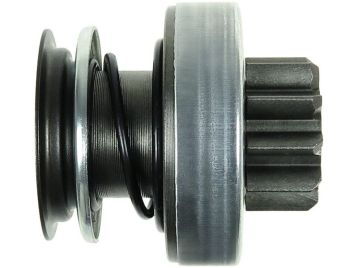

Brand new AS-PL Starter motor drive
I.d.1: 11.00 mm
L.1: 48.40 mm
L.2: 13.40 mm
Teeth: 10
Splines: 16
O.d.1: 47.30 mm
O.d.2: 27.90 mm
Rotation: CW
Reference number
| Code | Manufacturer | |
| UD01840SD | As-pl | |
| 1006209812 | Bosch | |
| 1006209827 | Bosch | |
| 234535 | Cargo | |
| 333195 | Cargo | |
| CQ2010950 | Cq | |
| DRV1221 | Electrolog | |
| 225665 | Era | |
| 2343 | Ghibaudi | |
| 4.5048.1 | Ika | |
| SDB1535 | Krauf | |
| SDB9535 | Krauf | |
| 940113020468 | Magneti Marelli | |
| 1012702 | Powermax | |
| 81012702 | Powermax | |
| 060.000.081 | Psh | |
| 11-812 | Stemot | |
| 62-42-16 | Visnova | |
| 54-91147 | Wai / Transpo | |
| SDV3927 | Woodauto | |
| 1.01.1576.0 | Zen | |
| 1576 | Zen | |
| ZN1576 | Zen |
Usage
| Brand | Model | Type | Year | Note |
| BOSCH | 0001108400 | starter motors | ||
| BOSCH | 0001108411 | starter motors |
