SD0142
Code: SD0142
Category: Starter drives
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE

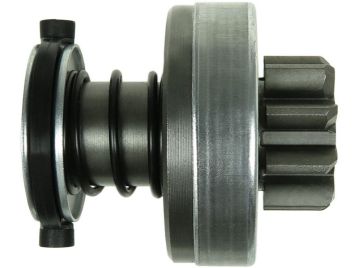

Brand new AS-PL Starter motor drive
I.d.1: 12.00 mm
L.1: 64.30 mm
L.2: 16.50 mm
Teeth: 9
Splines: 16
O.d.1: 57.50 mm
O.d.2: 34.20 mm
Rotation: CW
Reference number
| Code | Manufacturer | |
| 6033AD1062 | Bosch | |
| 233947 | Cargo | |
| 333212 | Cargo | |
| CQ2010458 | Cq | |
| DRV1204 | Electrolog | |
| 225635 | Era | |
| 2263 | Ghibaudi | |
| SDB1947 | Krauf | |
| SDB9947 | Krauf | |
| 940113020458 | Magneti Marelli | |
| 1015794 | Powermax | |
| 81015794 | Powermax | |
| 13-062 | Stemot | |
| 52-42-89 | Visnova | |
| 54-91142 | Wai / Transpo | |
| 54-91142-1 | Wai / Transpo | |
| 54-91142-ZEN | Wai / Transpo | |
| SDV38224 | Woodauto | |
| 1.01.1483.0 | Zen | |
| 1483 | Zen | |
| ZN1483 | Zen |
Usage
| Brand | Model | Type | Year | Note |
| As-pl | S0101 | starter motors | ||
| BOSCH | 0001223016 | starter motors | ||
| BOSCH | 0001223021 | starter motors |
