SD0146
Code: SD0146
Category: Starter drives
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE

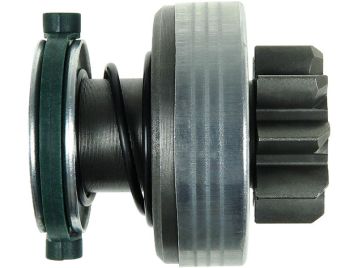

Brand new AS-PL Starter motor drive
I.d.1: 12.00 mm
L.1: 56.00 mm
L.2: 15.50 mm
Teeth: 9
Splines: 10
O.d.1: 53.00 mm
O.d.2: 36.00 mm
Rotation: CW
Reference number
| Code | Manufacturer | ||||
| AZMT-49-036-1955 | A.z. Meisterteile | ||||
| SD0146 | As-pl | ||||
| |||||
| UD01860SD | As-pl | ||||
| UD819297SD | As-pl | ||||
| 1006209818 | Bosch | ||||
| 1006209964 | Bosch | ||||
| 1006210111 | Bosch | ||||
| 1006210149 | Bosch | ||||
| 1986SE1653 | Bosch | ||||
| 237667 | Cargo | ||||
| 333396 | Cargo | ||||
| F032237667 | Cargo | ||||
| F032333396 | Cargo | ||||
| CDR10103AS | Casco | ||||
| CDR10103GS | Casco | ||||
| DRV1086 | Electrolog | ||||
| 225705 | Era | ||||
| FT81366 | Fast | ||||
| 6031 | Ghibaudi | ||||
| 4.5066.1 | Ika | ||||
| 11310103AV | Itab Automotive | ||||
| 11310103OV | Itab Automotive | ||||
| 500053150 | Iveco | ||||
| 500053567 | Iveco | ||||
| 50053567 | Iveco | ||||
| SDB1667 | Krauf | ||||
| SDB9667 | Krauf | ||||
| CQ2011002 | Lauber | ||||
| 940113020474 | Magneti Marelli | ||||
| 940113170474 | Magneti Marelli | ||||
| AMB0474 | Magneti Marelli | ||||
| 47005 | Meat & Doria | ||||
| 81014232 | Powermax | ||||
| 22401301BN | Real | ||||
| 22401301OE | Real | ||||
| SDR10103.0 | Sando | ||||
| SDR10103.1 | Sando | ||||
| PGN20232BO | SIOM | ||||
| PGN2032 | SIOM | ||||
| 06-80123-SX | Stellox | ||||
| 11-818 | Stemot | ||||
| 11818 | Stemot | ||||
| 060.000.351.016 | WAI | ||||
| 060.000.351.210 | WAI | ||||
| 060.000.351.280 | WAI | ||||
| 060.000.351.440 | WAI | ||||
| 54-91194 | WAI | ||||
| SDV38809 | Woodauto | ||||
| WOOSDV38809 | Woodauto | ||||
| 1.01.1650.0 | Zen | ||||
| 1650 | Zen | ||||
| ZN1650 | Zen | ||||
| AM-42818 | Auto Magneto | ||||
| AM-42818E | Auto Magneto | ||||
Usage
| Brand | Model | Type | Year | Note |
| As-pl | S0139 | starter motors | ||
| As-pl | S0139(SEG) | starter motors | ||
| As-pl | S0159 | starter motors | ||
| As-pl | S0482 | starter motors | ||
| As-pl | S0482(SEG) | starter motors | ||
| As-pl | S0510 | starter motors | ||
| As-pl | S0588 | starter motors | ||
| As-pl | S0614(SEG) | starter motors | ||
| As-pl | S0614S | starter motors | ||
| As-pl | S0698S | starter motors | ||
| BOSCH | 0001109300 | starter motors | ||
| BOSCH | 0001109301 | starter motors | ||
| BOSCH | 0001109302 | starter motors | ||
| BOSCH | 0001109303 | starter motors | ||
| BOSCH | 0001109306 | starter motors | ||
| BOSCH | 0001109307 | starter motors | ||
| BOSCH | 0001109335 | starter motors | ||
| BOSCH | 0001109344 | starter motors | ||
| BOSCH | 0001109360 | starter motors | ||
| BOSCH | 0001109405 | starter motors | ||
| BOSCH | 0001109417 | starter motors | ||
| BOSCH | 0001109430 | starter motors |
