  3. SD0146S



SD0146S


Code: SD0146S
Category: Starter drives
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE

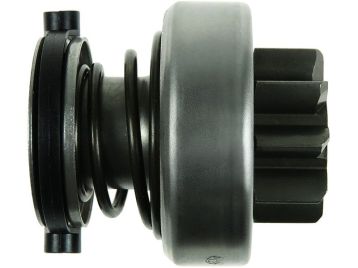

Brand new AS-PL Starter motor drive


I.d.1: 12.00 mm
L.1: 56.90 mm
L.2: 14.80 mm
Teeth: 9
Splines: 10
O.d.1: 54.00 mm
O.d.2: 36.00 mm
Rotation: CW


Reference number

CodeManufacturer
AZMT-49-036-1955A.z. Meisterteile
UD03250SDAs-pl
1006209818Bosch
1006209964Bosch
1006210111Bosch
1006210149Bosch
1986SE1653Bosch
237667Cargo
333396Cargo
F032237667Cargo
F032333396Cargo
CDR10103ASCasco
CDR10103GSCasco
DRV1086Electrolog
225705Era
FT81366Fast
6031Ghibaudi
4.5066.1Ika
11310103AVItab Automotive
11310103OVItab Automotive
500053150Iveco
500053567Iveco
50053567Iveco
SDB1667Krauf
SDB9667Krauf
CQ2011002Lauber
940113020474Magneti Marelli
940113170474Magneti Marelli
AMB0474Magneti Marelli
47005Meat & Doria
81014232Powermax
22401301BNReal
22401301OEReal
SDR10103.0Sando
SDR10103.1Sando
PGN20232BOSIOM
PGN2032SIOM
06-80123-SXStellox
11-818Stemot
11818Stemot
060.000.351.016WAI
060.000.351.210WAI
060.000.351.280WAI
060.000.351.440WAI
54-91194WAI
SDV38809Woodauto
WOOSDV38809Woodauto
1.01.1650.0Zen
1650Zen
ZN1650Zen
AM-42818Auto Magneto
AM-42818EAuto Magneto


Usage

BrandModelTypeYearNote
As-plS0139starter motors
As-plS0139(SEG)starter motors
As-plS0159starter motors
As-plS0482starter motors
As-plS0482(SEG)starter motors
As-plS0614(SEG)starter motors
As-plS0614Sstarter motors
BOSCH0001109300starter motors
BOSCH0001109301starter motors
BOSCH0001109302starter motors
BOSCH0001109303starter motors
BOSCH0001109306starter motors
BOSCH0001109307starter motors
BOSCH0001109335starter motors
BOSCH0001109344starter motors
