SD0190P


Code: SD0190P

Category: Starter drives

Manufacturer: Bosch

Supplier: As-pl

PREMIUM LINE

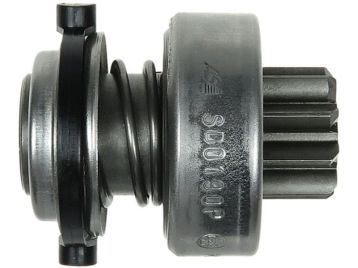

Brand new AS-PL Starter motor drive



I.d.1: 11.00 mm

L.1: 58.50 mm

L.2: 14.00 mm

Teeth: 9

Splines: 10

O.d.1: 46.00 mm

O.d.2: 25.30 mm

Rotation: CW



Reference number

CodeManufacturer
1006209527 Bosch
135569Cargo
5460-1090Dixie
DRV1345Electrolog
225209Era
1778Ghibaudi
SDB5569Krauf
SDB9569Krauf
940113020151Magneti Marelli
1011354Powermax
81011354Powermax
060.000.098Psh
11-527Stemot
42-42-69Visnova
54-9144Wai / Transpo
54-9144-1Wai / Transpo
61-15-6456Wilson
SDV38082Woodauto
0532Zen
1.01.0532.0Zen
1532Zen
ZN0532Zen
ZN1532Zen


Usage

BrandModelTypeYearNote
BOSCH0001108013starter motors
BOSCH0001108032starter motors
BOSCH0001108045starter motors
BOSCH0001108046starter motors
BOSCH0001108066starter motors
BOSCHB001111031starter motors
BOSCHB001111105starter motors
BOSCHB001111145starter motors
BOSCHB001111146starter motors
BOSCHB001111212starter motors
