SD0260S
Code: SD0260S
Category: Starter drives
Manufacturer: Bosch
Supplier: As-pl
STANDARD LINE

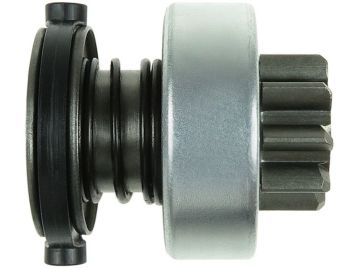

Brand new AS-PL Starter motor drive
I.d.1: 12.00 mm
L.1: 53.50 mm
L.2: 13.00 mm
Teeth: 9
Splines: 10
O.d.1: 48.00 mm
O.d.2: 29.00 mm
Rotation: ACW
Reference number
| Code | Manufacturer | ||||
| UD03161SD | As-pl | ||||
| 1006209602 | Bosch | ||||
| 138252 | Cargo | ||||
| DRV1022 | Electrolog | ||||
| 1936 | Ghibaudi | ||||
| |||||
| 4.5085.1 | Ika | ||||
| SDB1252 | Krauf | ||||
| 1012806 | Powermax | ||||
| 81012806 | Powermax | ||||
| 54-9194 | Wai / Transpo | ||||
| SDV38191 | Woodauto | ||||
Usage
| Brand | Model | Type | Year | Note |
| As-pl | S0377 | starter motors | ||
| BOSCH | 0001107024 | starter motors | ||
| BOSCH | 0001111010 | starter motors | ||
| BOSCH | 0001115038 | starter motors | ||
| BOSCH | 0001115042 | starter motors |
