SD1096P


Code: SD1096P

Category: Starter drives

Manufacturer: DELCO

Supplier: As-pl

PREMIUM LINE

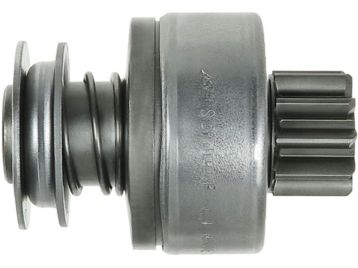

Brand new AS-PL Starter motor drive



I.d.1: 14.00 mm

L.1: 85.50 mm

L.2: 24.00 mm

Teeth: 10

Splines: 12

O.d.1: 60.00 mm

O.d.2: 32.00 mm

Rotation: CW



Reference number

CodeManufacturer
UD17747SDAs-pl
137760Cargo
10457121DELCO
5401-2812Dixie
DRV2609Electrolog
225303Era
6041Ghibaudi
RE52124John Deere
SDD2760Krauf
AMB0221Magneti Marelli
0235000780Nikko
1011513Powermax
81011513Powermax
SD-3166Unipoint
SD-3167Unipoint
54-8411Wai / Transpo
54-8411-1Wai / Transpo
61-01-3495Wilson
SDV30620Woodauto
0722Zen
1.01.0722.0Zen
ZN0722Zen


Usage

BrandModelTypeYearNote
As-plS1007starter motors
DELCO10479611starter motors
DELCO10479616starter motors
DELCO10479623starter motors
DELCO10479629starter motors
DELCO10479655starter motors
DELCO1113272starter motors
DELCO1113277starter motors
DELCO1113291starter motors
UNIPOINTSTR7055starter motors
UNIPOINTSTR7068starter motors
UNIPOINTSTR7150starter motors
UNIPOINTSTR7158starter motors
UNIPOINTSTR7162starter motors
UNIPOINTSTR7169starter motors
