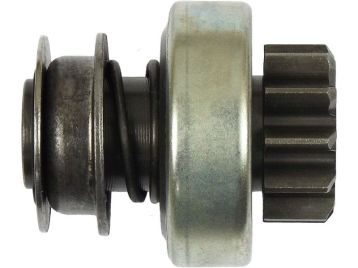

SD2006


Code: SD2006
Category: Starter drives
Manufacturer: Hitachi
Supplier: As-pl
STANDARD LINE
Brand new AS-PL Starter motor drive


I.d.1: 14.20 mm
L.1: 70.00 mm
L.2: 18.60 mm
Teeth: 11
Splines: 12
O.d.1: 60.40 mm
O.d.2: 40.50 mm
Rotation: CW


Reference number

CodeManufacturer
132453Cargo
CQ2010523Cq
DRV3008Electrolog
225236Era
1599Ghibaudi
2130-5500Hitachi
2130-7500Hitachi
2250-45003Hitachi
2250-85004Hitachi
TMJ120Lucas
23312-C6800Nissan
23312-J2003Nissan
1013763Powermax
39-70-83Visnova
54-8145Wai / Transpo
SDV38514Woodauto
0580Zen
1.01.0580.0Zen
ZN0580Zen
AM-42312Auto Magneto


Usage

BrandModelTypeYearNote
HITACHIS1314starter motors
HITACHIS1315starter motors
HITACHIS25131starter motors
HITACHIS25131Astarter motors
HITACHIS25155starter motors
HITACHIS25155Cstarter motors
HITACHIS25155Dstarter motors
HITACHIS2575starter motors
HITACHIS2575Astarter motors
