SD4016


Code: SD4016
Category: Starter drives
Manufacturer: Magneti Marelli
Supplier: As-pl
STANDARD LINE

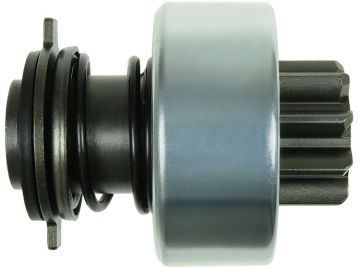

Brand new AS-PL Starter motor drive


I.d.1: 14.20 mm
L.1: 77.30 mm
L.2: 17.30 mm
Teeth: 9
Splines: 6
O.d.1: 61.60 mm
O.d.2: 35.00 mm
Rotation: CW


Reference number

CodeManufacturer
132331Cargo
132821Cargo
136459Cargo
F032132331Cargo
F032132821Cargo
F032136459Cargo
CDR30100ASCasco
CDR30100GSCasco
CQ2010276Cq
DRV4184Electrolog
225244Era
79081045Fiat
7984505Fiat
9961781Fiat
1574Ghibaudi
2031Ghibaudi
SDL5821Krauf
SDV3728Krauf
085540151010Magneti Marelli
085540191010Magneti Marelli
72159801Magneti Marelli
85540151Magneti Marelli
940113020179Magneti Marelli
AMB0179Magneti Marelli
81013015Powermax
22404001BNReal
22404001OEReal
SDR30100.0Sando
SDR30100.1Sando
00-032Stemot
21-41-29Visnova
54-9307Wai / Transpo
54-9307-ZENWai / Transpo
0601Zen
1.01.0601.0Zen
ZN0601Zen
18758Znp


Usage

BrandModelTypeYearNote
As-plS4026starter motors
As-plS4044starter motors
MAGNETI MARELLI63216731starter motors
MAGNETI MARELLI63216741starter motors
MAGNETI MARELLI63216831starter motors
MAGNETI MARELLI63216896starter motors
MAGNETI MARELLI63217126starter motors
MAGNETI MARELLI63217148starter motors
MAGNETI MARELLI63217154starter motors
MAGNETI MARELLI63217188starter motors
MAGNETI MARELLI63217226starter motors
MAGNETI MARELLI63217410starter motors
