SD4096S


Code: SD4096S
Category: Starter drives
Manufacturer: Lucas
Supplier: As-pl
STANDARD LINE

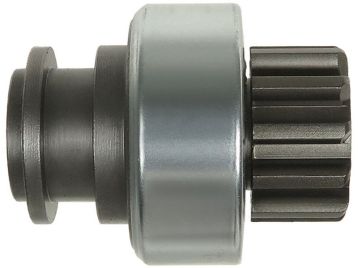

Brand new AS-PL Starter motor drive


I.d.1: 17.00 mm
L.1: 73.50 mm
L.2: 22.00 mm
Teeth: 11
Splines: 12
O.d.1: 58.50 mm
O.d.2: 39.20 mm
Rotation: CW


Reference number

CodeManufacturer
UD47966SDAs-pl
131708Cargo
F032131708Cargo
CQ2010572Cq
DRV4059Electrolog
225165Era
3004Ghibaudi
SDL1708Krauf
54247396Lucas
60600077Lucas
TMB124Lucas
940113020117Magneti Marelli
AMB0117Magneti Marelli
81016311Powermax
54-9216Wai / Transpo
54-9216-ZENWai / Transpo
SDV3143Woodauto
0411Zen
1.01.0411.0Zen
ZN0411Zen


Usage

BrandModelTypeYearNote
As-plS4014starter motors
LUCAS26278starter motors
LUCAS26278Hstarter motors
LUCAS26301starter motors
LUCAS26301Hstarter motors
LUCAS27413starter motors
LUCAS27413Astarter motors
LUCAS27413Dstarter motors
LUCAS27421starter motors
LUCAS27421Astarter motors
LUCAS27421Bstarter motors
LUCAS27463starter motors
LUCAS27463Astarter motors
LUCAS27463Dstarter motors
LUCASLRS157starter motors
MAGNETI MARELLI63227413starter motors
MAGNETI MARELLI63227421starter motors
