SD9019
Code: SD9019
Category: Starter drives
Manufacturer: Elmot
Supplier: As-pl
STANDARD LINE

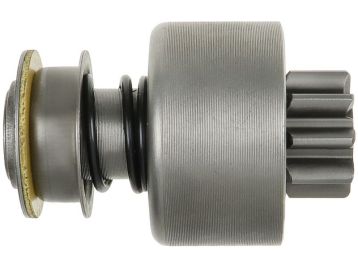

Brand new AS-PL Starter motor drive
I.d.1: 14.30 mm
L.1: 91.00 mm
L.2: 18.80 mm
Teeth: 9
Splines: 10
O.d.1: 60.00 mm
O.d.2: 34.30 mm
Rotation: CW
Usage
| Brand | Model | Type | Year | Note |
| ELMOT | R10A | starter motors | ||
| ELMOT | R10C | starter motors | ||
| ELMOT | R10CW | starter motors | ||
| ELMOT | R10KM | starter motors | ||
| ELMOT | R10TA | starter motors | ||
| ELMOT | R10U | starter motors | ||
| ELMOT | R10Z | starter motors | ||
| ELMOT | R11A | starter motors | ||
| ELMOT | R11B | starter motors | ||
| ELMOT | R11C | starter motors | ||
| ELMOT | R11G | starter motors | ||
| ELMOT | R11H | starter motors | ||
| ELMOT | R11HB | starter motors | ||
| ELMOT | R11K | starter motors | ||
| ELMOT | R11L | starter motors | ||
| ELMOT | R11N | starter motors |
