SD9034


Code: SD9034
Category: Starter drives
Manufacturer: Briggs Stratton
Supplier: As-pl
STANDARD LINE

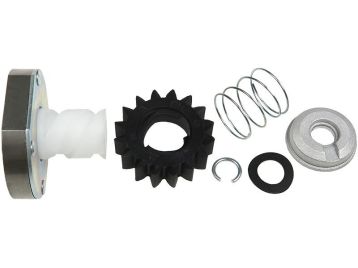

Brand new AS-PL Starter motor planet gear with drive


I.d.1: 10.00 mm
L.1: 35.70 mm
L.2: 25.60 mm
Teeth: 16
O.d.1: 50.80 mm
O.d.2: 40.10 mm
Rotation: ACW


Reference number

CodeManufacturer
497606Briggs Stratton
230400Cargo
F032230400Cargo
CQ2010775Cq
KSTX010Electrolog
1011169Powermax
54-7007Wai / Transpo
EC41802Woodauto


Usage

BrandModelTypeYearNote
As-plS9027starter motors
As-plS9028starter motors
As-plS9421Sstarter motors
Briggs & Stratton497401starter motors
Briggs & Stratton497594starter motors
Briggs & Stratton497595starter motors
Briggs & Stratton499521starter motors
Briggs & Stratton693054starter motors
Briggs Stratton497596starter motors
