SD9069
Code: SD9069
Category: Starter drives
Manufacturer: Iskra / Letrika
Supplier: As-pl
STANDARD LINE

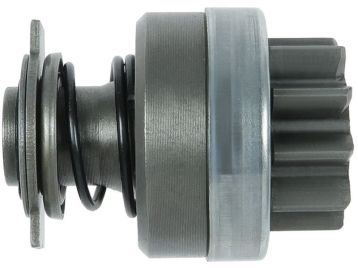

Brand new AS-PL Starter motor drive
I.d.1: 14.30 mm
L.1: 81.90 mm
L.2: 19.20 mm
Teeth: 10
Splines: 10
O.d.1: 62.00 mm
O.d.2: 47.60 mm
Rotation: CW
Reference number
| Code | Manufacturer | |
| UD10261SD | As-pl | |
| DRV79000 | Electrolog | |
| 6023 | Ghibaudi | |
| 16.911.674 | Iskra / Letrika | |
| SDI3674З | Krauf | |
| 72738046 | Mahle | |
| MSX531 | Mahle | |
| MSX531OF | Mahle | |
| 01-037 | Stemot | |
| 3-5324-W | Wai / Transpo | |
| MAHMSX531 | Woodauto |
Usage
| Brand | Model | Type | Year | Note |
| As-pl | S9230 | starter motors | ||
| Iskra / Letrika | 11131150 | starter motors | ||
| Iskra / Letrika | 11131316 | starter motors | ||
| Iskra / Letrika | AZF4554 | starter motors | ||
| Iskra / Letrika | IS1102 | starter motors |
