SD9286S
Code: SD9286S
Category: Starter drives
Manufacturer: Belarus
Supplier: As-pl
STANDARD LINE

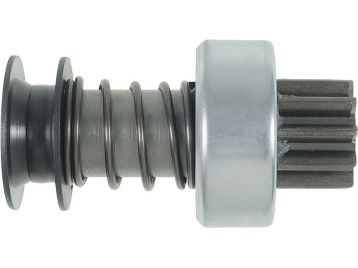

Brand new AS-PL Starter motor drive
I.d.1: 16.00 mm
L.1: 108.00 mm
L.2: 26.00 mm
Teeth: 10
Splines: 6
O.d.1: 60.00 mm
O.d.2: 36.50 mm
Rotation: CW
Reference number
| Code | Manufacturer | |
| UD104616SD | As-pl | |
| CT352-3708600 | Belarus | |
| CT352D-370-8600-3 | Belarus | |
| 134723 | Cargo | |
| F032134723 | Cargo | |
| 1613 | Ghibaudi | |
| 4.5178.1 | Ika | |
| 243708600 | Kamaz | |
| SDR1613 | Krauf | |
| 06-80256-SX | Stellox | |
| 04-029 | Stemot | |
| 49-53-36 | Visnova |
Usage
| Brand | Model | Type | Year | Note |
| BELARUS | 24063708000 | starter motors |
