S1203S
Kód: S1203S
Kategória: Indítómotor
Típus: DELCO
Gyártó: As-pl
: 8200733
STANDARD LINE

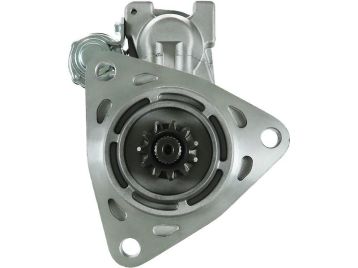

Brand new AS-PL Starter motor
A: 92.00 mm
B: 47.00 mm
C.1: 13.50 mm
C.2: 13.50 mm
C.3: 13.50 mm
L.1: 407.00 mm
Fogak száma: 11
Pajzsban lévő furatok száma: 3
Menetes furatok száma: 0
O.1: 126.00 mm
O.2: 126.00 mm
O.3: 126.00 mm
Teljesitmeny: 5.50 kW
Forgás: CW
Volt: 24 v
Megegyező cikkszám
| Kód | Típus | ||||||||||
| UD90514S | As-pl | ||||||||||
| 8200733 | DELCO | ||||||||||
| |||||||||||
| STB1399 | Krauf | ||||||||||
| STB9399 | Krauf | ||||||||||
| STM1399 | Krauf | ||||||||||
Felhasznállás
| Kocsi típus | Model | Motor kód | Évjárat | Megjegyzés |
| SCANIA | 230 11.7 | DC12.13 | 09.2005- | |
| SCANIA | 230 8.9 | DC9.13 | 09.2004- | |
| SCANIA | 230 8.9 | DC9.13 | 08.2006- | |
| SCANIA | 230 8.9 | DC9.13 | 09.2007- | |
| SCANIA | 230 8.9 | DC9.13 | 01.2008- | |
| SCANIA | 230 8.9 | DC9.16 | 09.2004- | |
| SCANIA | 230 8.9 | DC9.16 | 09.2005- | |
| SCANIA | 230 8.9 | DC9.16 | 04.2006- | |
| SCANIA | 230 8.9 | DC9.16 | 08.2006- | |
| SCANIA | 230 8.9 | DC9.16 | 09.2007- | |
| SCANIA | 230 8.9 | DC9.16 | 01.2008- | |
| SCANIA | 230 8.9 | DC9.18 | 09.2004- | |
| SCANIA | 230 9.3 | DC9.30 | 09.2007- | |
| SCANIA | 230 9.3 | DC9.35 | 09.2007- | |
| SCANIA | 230 9.3 | DC9.39 | 09.2007- | |
| SCANIA | 250 9.3 | DC09.111 | 09.2013- | |
| SCANIA | 270 11.7 | DC12.17 | 04.2004- | |
| SCANIA | 270 8.9 | DC9.12 | 04.2004- | |
| SCANIA | 270 8.9 | DC9.12 | 09.2004- | |
| SCANIA | 270 8.9 | DC9.12 | 08.2006- | |
| SCANIA | 270 8.9 | DC9.17 | 04.2004- | |
| SCANIA | 270 8.9 | DC9.17 | 09.2004- | |
| SCANIA | 270 8.9 | DC9.17 | 08.2006- | |
| SCANIA | 280 9.3 | DC09.113 | 07.2009- | |
| SCANIA | 280 9.3 | DC09.113 | 09.2009- | |
| SCANIA | 280 9.3 | DC09.113 | 08.2012- | |
| SCANIA | 280 9.3 | DC09.113 | 09.2013- | |
| SCANIA | 280 9.3 | DC9.29 | 09.2007- | |
| SCANIA | 280 9.3 | DC9.29 | 07.2009- | |
| SCANIA | 280 9.3 | DC9.29 | 09.2009- | |
| SCANIA | 280 9.3 | DC9.36 | 07.2009- | |
| SCANIA | 280 9.3 | DC9.36 | 09.2009- | |
| SCANIA | 280 9.3 | DC9.36 | 08.2012- | |
| SCANIA | 280 9.3 | DC9.36 | 09.2013- | |
| SCANIA | 280 9.3 | DC9.38 | 07.2009- | |
| SCANIA | 280 9.3 | DC9.38 | 09.2009- | |
| SCANIA | 280 9.3 | DC9.38 | 08.2012- | |
| SCANIA | 280 9.3 | DC9.38 | 09.2013- | |
| SCANIA | 310 8.9 | DC9.11 | 04.2004- | |
| SCANIA | 310 8.9 | DC9.11 | 09.2004- | |
| SCANIA | 310 8.9 | DC9.11 | 08.2006- | |
| SCANIA | 310 8.9 | DC9.11 | 01.2008- | |
| SCANIA | 310 8.9 | DC9.17 | 04.2004- | |
| SCANIA | 310 8.9 | DC9.18 | 04.2004- | |
| SCANIA | 310 8.9 | DC9.18 | 09.2004- | |
| SCANIA | 310 8.9 | DC9.18 | 08.2006- | |
| SCANIA | 320 9.3 | DC09.108 | 07.2009- | |
| SCANIA | 320 9.3 | DC9.22 | 07.2009- | |
| SCANIA | 320 9.3 | DC9.22 | 09.2009- | |
| SCANIA | 320 9.3 | DC9.32 | 07.2009- | |
| SCANIA | 320 9.3 | DC9.32 | 09.2009- | |
| SCANIA | 320 9.3 | DC9.37 | 07.2009- | |
| SCANIA | 320 9.3 | DC9.37 | 09.2009- | |
| SCANIA | 340 10.6 | DC11.08 | 03.2004- | |
| SCANIA | 340 10.6 | DC11.08 | 04.2004- | |
| SCANIA | 340 10.6 | DC11.08 | 09.2004- | |
| SCANIA | 340 11.7 | DC12.10 | 04.2004- | |
| SCANIA | 340 11.7 | DC12.10 | 08.2004- | |
| SCANIA | 340 11.7 | DC12.10 | 08.2006- | |
| SCANIA | 340 11.7 | DC12.10 | 10.2006- | |
| SCANIA | 340 11.7 | DC12.13 | 09.2005- | |
| SCANIA | 340 11.7 | DC12.17 | 09.2005- | |
| SCANIA | 340 11.7 | DC12.26 | 08.2004- | |
| SCANIA | 360 12.7 | DC13.06 | 09.2009- | |
| SCANIA | 360 12.7 | DC13.06 | 04.2010- | |
| SCANIA | 360 12.7 | DC13.06 | 08.2010- | |
| SCANIA | 360 12.7 | DC13.114 | 04.2010- | |
| SCANIA | 360 9.3 | DC09.112 | 09.2013- | |
| SCANIA | 380 10.6 | DC11.09 | 03.2004- | |
| SCANIA | 380 10.6 | DC11.09 | 04.2004- | |
| SCANIA | 380 10.6 | DC11.09 | 09.2004- | |
| SCANIA | 380 11.7 | DC12.13 | 04.2004- | |
| SCANIA | 380 11.7 | DC12.13 | 08.2004- | |
| SCANIA | 380 11.7 | DC12.13 | 09.2004- | |
| SCANIA | 380 11.7 | DC12.13 | 09.2005- | |
| SCANIA | 380 11.7 | DC12.13 | 10.2006- | |
| SCANIA | 380 11.7 | DC12.13 | 03.2008- | |
| SCANIA | 380 11.7 | DC12.13 | 04.2010- | |
| SCANIA | 380 11.7 | DC12.17 | 09.2005- | |
| SCANIA | 380 11.7 | DC12.17 | 03.2008- | |
| SCANIA | 380 11.7 | DC12.18 | 04.2004- | |
| SCANIA | 400 12.7 | DC13.05 | 03.2008- | |
| SCANIA | 400 12.7 | DC13.05 | 07.2009- | |
| SCANIA | 400 12.7 | DC13.05 | 01.2010- | |
| SCANIA | 400 12.7 | DC13.05 | 04.2010- | |
| SCANIA | 400 12.7 | DC13.05 | 08.2010- | |
| SCANIA | 400 12.7 | DC13.103 | 08.2010- | |
| SCANIA | 400 12.7 | DC13.113 | 03.2009- | |
| SCANIA | 400 12.7 | DC13.113 | 01.2010- | |
| SCANIA | 420 11.7 | DC12.06 | 03.2004- | |
| SCANIA | 420 11.7 | DC12.06 | 09.2005- | |
| SCANIA | 420 11.7 | DC12.06 | 09.2007- | |
| SCANIA | 420 11.7 | DC12.14 | 03.2004- | |
| SCANIA | 420 11.7 | DC12.14 | 04.2004- | |
| SCANIA | 420 11.7 | DC12.14 | 09.2004- | |
| SCANIA | 420 11.7 | DC12.14 | 08.2006- | |
| SCANIA | 420 11.7 | DC12.14 | 01.2008- | |
| SCANIA | 420 11.7 | DC12.15 | 03.2004- | |
| SCANIA | 420 11.7 | DC12.15 | 04.2004- | |
| SCANIA | 420 11.7 | DC12.15 | 09.2004- | |
| SCANIA | 420 11.7 | DC12.15 | 02.2006- | |
| SCANIA | 420 11.7 | DC12.15 | 08.2006- | |
| SCANIA | 420 11.7 | DT12.11 | 03.2004- | |
| SCANIA | 420 11.7 | DT12.12 | 03.2004- | |
| SCANIA | 420 11.7 | DT12.12 | 09.2004- | |
| SCANIA | 420 11.7 | DT12.12 | 09.2005- | |
| SCANIA | 420 11.7 | DT12.12 | 01.2008- | |
| SCANIA | 420 11.7 | DT12.14 | 09.2005- | |
| SCANIA | 440 12.7 | DC13.109 | 01.2010- | |
| SCANIA | 440 12.7 | DC13.109 | 04.2010- | |
| SCANIA | 440 12.7 | DC13.10 | 03.2008- | |
| SCANIA | 440 12.7 | DC13.10 | 07.2009- | |
| SCANIA | 440 12.7 | DC13.10 | 01.2010- | |
| SCANIA | 440 12.7 | DC13.10 | 04.2010- | |
| SCANIA | 440 12.7 | DC13.10 | 08.2010- | |
| SCANIA | 440 12.7 | DC13.112 | 07.2009- | |
| SCANIA | 440 12.7 | DC13.112 | 01.2010- | |
| SCANIA | 440 12.7 | DC13.121 | 01.2010- | |
| SCANIA | 450 12.7 | DC13.124 | 09.2013- | |
| SCANIA | 470 11.7 | DT12.03 | 03.2004- | |
| SCANIA | 470 11.7 | DT12.03 | 04.2004- | |
| SCANIA | 470 11.7 | DT12.06 | 03.2004- | |
| SCANIA | 470 11.7 | DT12.06 | 09.2005- | |
| SCANIA | 480 11.7 | DT12.03 | 04.2004- | |
| SCANIA | 480 11.7 | DT12.17 | 04.2004- | |
| SCANIA | 480 11.7 | DT12.17 | 08.2006- | |
| SCANIA | 480 11.7 | DT12.17 | 01.2008- | |
| SCANIA | 480 11.7 | DT12.17 | 03.2008- | |
| SCANIA | 480 12.7 | DC13.07 | 03.2008- | |
| SCANIA | 480 12.7 | DC13.07 | 01.2010- | |
| SCANIA | 480 12.7 | DC13.07 | 04.2010- | |
| SCANIA | 480 12.7 | DC13.07 | 08.2010- | |
| SCANIA | 480 12.7 | DC13.110 | 08.2010- | |
| SCANIA | 480 12.7 | DC13.111 | 04.2010- | |
| SCANIA | 480 12.7 | DC13.111 | 08.2010- | |
| SCANIA | 480 12.7 | DC13.110 | 04.2010-01.0001 | |
| SCANIA | 480 12.7 | DC13.111 | 01.2010-01.0001 | |
| SCANIA | 490 12.7 | DC13.125 | 09.2013- | |
| SCANIA | G 230 9.3 | DC9.30 | 09.2007- | |
| SCANIA | G 230 9.3 | DC9.35 | 09.2007- | |
| SCANIA | G 230 9.3 | DC9.39 | 09.2007- | |
| SCANIA | G 420 11.7 | DC12.06 | 01.2008- | |
| SCANIA | G 440 11.7 | DT12.18 | 10.2007- | |
| SCANIA | G 440 11.7 | DT12.18 | 01.2008- | |
| SCANIA | G 440 12.7 | 01.2012- | ||
| SCANIA | G 460 12.7 | 05.2013- | ||
| SCANIA | G 460 12.7 | 09.2013- | ||
| SCANIA | G 470 11.7 | DT12.06 | 01.2010- | |
| SCANIA | G 480 12.7 | DC13.07 | 01.2012- | |
| SCANIA | G 480 12.7 | DC13.111 | 01.2012- | |
| SCANIA | P 230 9.3 | DC9.30 | 09.2007- | |
| SCANIA | P 230 9.3 | DC9.35 | 09.2007- | |
| SCANIA | P 230 9.3 | DC9.39 | 09.2007- | |
| SCANIA | P 270 8.9 | 01.2012- | ||
| SCANIA | P 270 9.3 | DC09.E02 | 01.2012- | |
| SCANIA | P 310 8.9 | 07.2007-06.2012 | ||
| SCANIA | P 310 9.0 | DC9.11 | 01.2010- | |
| SCANIA | P 310 9.3 | OC9.G05 | 01.2011- | |
| SCANIA | P 340 11.0 | DC11.08 | 04.2004- | |
| SCANIA | P 340 11.0 | DC11.08 | 09.2004- | |
| SCANIA | P 340 11.0 | DC11.08 | 01.2008- | |
| SCANIA | P 340 9.3 | OC09.102 | 01.2011- | |
| SCANIA | P 360 12.7 | 01.2012- | ||
| SCANIA | P 380 11.0 | DC11.09 | 04.2004- | |
| SCANIA | P 400 12.7 | DC13.05 | 09.2007- | |
| SCANIA | P 400 12.7 | DC13.113 | 09.2007- | |
| SCANIA | P 420 11.7 | DC12.06 | 01.2005-12.2011 | |
| SCANIA | P 420 11.7 | DC12.06 | 01.2008- | |
| SCANIA | P 420 11.7 | DC12.15 | 01.2005-12.2011 | |
| SCANIA | P 420 11.7 | DC12.22 | 01.2005-12.2011 | |
| SCANIA | P 420 11.7 | DT12.11 | 01.2005-12.2011 | |
| SCANIA | P 420 11.7 | DT12.12 | 01.2005-12.2011 | |
| SCANIA | P 420 11.7 | DC12.14 | 09.2004-12.2011 | |
| SCANIA | R 440 11.7 | DT12.18 | 01.2008- | |
| SCANIA | R 440 12.7 | DC13.109 | 01.2012- | |
| SCANIA | R 440 12.7 | DC13.10 | 01.2012- | |
| SCANIA | R 440 12.7 | DC13.10 | 10.2012- | |
| SCANIA | R 440 12.7 | DC13.112 | 01.2012- | |
| SCANIA | R 450 12.7 | DC13.147 | 09.2013- | |
| SCANIA | R 470 11.7 | DT12.03 | 03.2004- | |
| SCANIA | R 470 11.7 | DT12.06 | 03.2004- | |
| SCANIA | R 480 12.7 | DC13.07 | 01.2012- | |
| SCANIA | R 480 12.7 | DC13.110 | 01.2012- | |
| SCANIA | R 480 12.7 | DC13.111 | 01.2012- |
