S5522S
Kód: S5522S
Kategória: Indítómotor
Típus: MITSUBISHI
Gyártó: As-pl
: M9T86171
STANDARD LINE

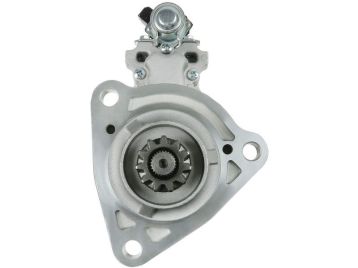

Brand new AS-PL Starter motor
A: 92.00 mm
B: 48.00 mm
C.1: 14.00 mm
C.2: 14.00 mm
C.3: 14.00 mm
L.1: 347.00 mm
Fogak száma: 11
Pajzsban lévő furatok száma: 3
Menetes furatok száma: 0
O.1: 127.00 mm
O.2: 127.00 mm
O.3: 127.00 mm
Teljesitmeny: 7.00 kW
Forgás: CW
Volt: 24 v
Megegyező cikkszám
| Kód | Típus | |
| UD104570S | As-pl | |
| UD21478S | As-pl | |
| SMI698 | Autoteam | |
| 109125 | Farcom | |
| STM2564 | Krauf | |
| 336610 | Logistik | |
| 51.26201-7261 | Man | |
| 51.26201-7288 | Man | |
| M009T86171 | MITSUBISHI | |
| M009T86171AM | MITSUBISHI | |
| M9T86171 | MITSUBISHI | |
| M9T86171AM | MITSUBISHI | |
| 551.571.113.130 | Psh | |
| 551.571.113.370 | Psh | |
| S143.445 | Psh | |
| S144.941 | Psh | |
| MITM9T86171 | Woodauto |
Felhasznállás
| Kocsi típus | Model | Motor kód | Évjárat | Megjegyzés |
| MAN | TGS II 18.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 18.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 18.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 18.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 18.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 18.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 18.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 18.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 18.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 24.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 24.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 24.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 24.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 24.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 24.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 24.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 24.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 24.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 26.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 26.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 26.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 26.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 26.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 26.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 26.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 26.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 26.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 26.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 26.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 26.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 26.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 26.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 26.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 26.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 26.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 26.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 26.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 26.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 26.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 28.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 28.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 28.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 33.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 33.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 33.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 33.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 33.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 33.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 33.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 33.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 33.640 | D3876LF10 | 02.2020- | |
| MAN | TGS II 35.540 | D3876LF12 | 02.2020- | |
| MAN | TGS II 35.580 | D3876LF11 | 02.2020- | |
| MAN | TGS II 35.640 | D3876LF10 | 02.2020- | |
| MAN | TGX I 18.520 | D3876LF02 | 09.2014-09.2021 | |
| MAN | TGX I 18.520 | D3876LF02 | 01.2014-09.2021 | |
| MAN | TGX I 18.520 | D3876LF05 | 01.2014-09.2021 | |
| MAN | TGX I 18.540 | D3876LF08 | 09.2016-09.2021 | |
| MAN | TGX I 18.540 | D3876LF08 | 09.2016-09.2021 | |
| MAN | TGX I 18.560 | D3876LF01 | 09.2014-09.2021 | |
| MAN | TGX I 18.560 | D3876LF01 | 01.2014-09.2021 | |
| MAN | TGX I 18.560 | D3876LF04 | 01.2014-09.2021 | |
| MAN | TGX I 18.580 | D3876LF07 | 09.2016-09.2021 | |
| MAN | TGX I 18.580 | D3876LF07 | 09.2016-09.2021 | |
| MAN | TGX I 18.640 | D3876LF09 | 09.2016-09.2021 | |
| MAN | TGX I 24.520 | D3876LF02 | 01.2014-09.2021 | |
| MAN | TGX I 24.560 | D3876LF01 | 01.2014-09.2021 | |
| MAN | TGX I 26.520 | D3876LF02 | 01.2014-09.2021 | |
| MAN | TGX I 26.520 | D3876LF02 | 01.2014-09.2021 | |
| MAN | TGX I 26.520 | D3876LF02 | 01.2014-09.2021 | |
| MAN | TGX I 26.520 | D3876LF02 | 01.2014-09.2021 | |
| MAN | TGX I 26.520 | D3876LF02 | 01.2014-09.2021 | |
| MAN | TGX I 26.520 | D3876LF02 | 01.2014-09.2021 | |
| MAN | TGX I 26.520 | D3876LF02 | 01.2014-09.2021 | |
| MAN | TGX I 26.520 | D3876LF05 | 01.2014-09.2021 | |
| MAN | TGX I 26.520 | D3876LF05 | 01.2014-09.2021 | |
| MAN | TGX I 26.520 | D3876LF05 | 01.2014-09.2021 | |
| MAN | TGX I 26.540 | D3876LF08 | 09.2016-09.2021 | |
| MAN | TGX I 26.540 | D3876LF08 | 09.2016-09.2021 | |
| MAN | TGX I 26.540 | D3876LF08 | 09.2016-09.2021 | |
| MAN | TGX I 26.540 | D3876LF08 | 09.2016-09.2021 | |
| MAN | TGX I 26.540 | D3876LF08 | 09.2016-09.2021 | |
| MAN | TGX I 26.540 | D3876LF08 | 09.2016-09.2021 | |
| MAN | TGX I 26.540 | D3876LF08 | 09.2016-09.2021 | |
| MAN | TGX I 26.560 | D3876LF01 | 01.2014-09.2021 | |
| MAN | TGX I 26.560 | D3876LF01 | 01.2014-09.2021 | |
| MAN | TGX I 26.560 | D3876LF01 | 01.2014-09.2021 | |
| MAN | TGX I 26.560 | D3876LF01 | 01.2014-09.2021 | |
| MAN | TGX I 26.560 | D3876LF01 | 01.2014-09.2021 | |
| MAN | TGX I 26.560 | D3876LF01 | 01.2014-09.2021 | |
| MAN | TGX I 26.560 | D3876LF01 | 01.2014-09.2021 | |
| MAN | TGX I 26.560 | D3876LF04 | 01.2014-09.2021 | |
| MAN | TGX I 26.560 | D3876LF04 | 01.2014-09.2021 | |
| MAN | TGX I 26.560 | D3876LF04 | 01.2014-09.2021 | |
| MAN | TGX I 26.580 | D3876LF07 | 09.2016-09.2021 | |
| MAN | TGX I 26.580 | D3876LF07 | 09.2016-09.2021 | |
| MAN | TGX I 26.580 | D3876LF07 | 09.2016-09.2021 | |
| MAN | TGX I 26.580 | D3876LF07 | 09.2016-09.2021 | |
| MAN | TGX I 26.580 | D3876LF07 | 09.2016-09.2021 | |
| MAN | TGX I 26.580 | D3876LF07 | 09.2016-09.2021 | |
| MAN | TGX I 26.580 | D3876LF07 | 09.2016-09.2021 | |
| MAN | TGX I 26.640 | D3876LF09 | 09.2016-09.2021 | |
| MAN | TGX I 26.640 | D3876LF09 | 09.2016-09.2021 | |
| MAN | TGX I 26.640 | D3876LF09 | 09.2016-09.2021 | |
| MAN | TGX I 26.640 | D3876LF09 | 09.2016-09.2021 | |
| MAN | TGX I 26.640 | D3876LF09 | 09.2016-09.2021 | |
| MAN | TGX I 26.640 | D3876LF09 | 09.2016-09.2021 | |
| MAN | TGX I 28.520 | D3876LF02 | 01.2014-09.2021 | |
| MAN | TGX I 28.520 | D3876LF02 | 01.2014-09.2021 | |
| MAN | TGX I 28.520 | D3876LF05 | 01.2014-09.2021 | |
| MAN | TGX I 28.540 | D3876LF08 | 09.2016-09.2021 | |
| MAN | TGX I 28.540 | D3876LF08 | 09.2016-09.2021 | |
| MAN | TGX I 28.560 | D3876LF01 | 01.2014-09.2021 | |
| MAN | TGX I 28.560 | D3876LF01 | 01.2014-09.2021 | |
| MAN | TGX I 28.560 | D3876LF04 | 01.2014-09.2021 | |
| MAN | TGX I 28.580 | D3876LF07 | 09.2016-09.2021 | |
| MAN | TGX I 28.580 | D3876LF07 | 09.2016-09.2021 | |
| MAN | TGX I 33.520 | D3876LF02 | 01.2014-09.2021 | |
| MAN | TGX I 33.520 | D3876LF02 | 01.2014-09.2021 | |
| MAN | TGX I 33.520 | D3876LF02 | 01.2014-09.2021 | |
| MAN | TGX I 33.520 | D3876LF05 | 01.2014-09.2021 | |
| MAN | TGX I 33.540 | D3876LF08 | 09.2016-09.2021 | |
| MAN | TGX I 33.540 | D3876LF08 | 09.2016-09.2021 | |
| MAN | TGX I 33.540 | D3876LF08 | 09.2016-09.2021 | |
| MAN | TGX I 33.560 | D3876LF01 | 01.2014-09.2021 | |
| MAN | TGX I 33.560 | D3876LF01 | 01.2014-09.2021 | |
| MAN | TGX I 33.560 | D3876LF01 | 01.2014-09.2021 | |
| MAN | TGX I 33.560 | D3876LF04 | 01.2014-09.2021 | |
| MAN | TGX I 33.580 | D3876LF07 | 09.2016-09.2021 | |
| MAN | TGX I 33.580 | D3876LF07 | 09.2016-09.2021 | |
| MAN | TGX I 33.580 | D3876LF07 | 09.2016-09.2021 | |
| MAN | TGX I 33.640 | D3876LF09 | 09.2016-09.2021 | |
| MAN | TGX I 33.640 | D3876LF09 | 09.2016-09.2021 | |
| MAN | TGX I 35.520 | D3876LF02 | 01.2014-09.2021 | |
| MAN | TGX I 35.520 | D3876LF05 | 01.2014-09.2021 | |
| MAN | TGX I 35.540 | D3876LF08 | 09.2016-09.2021 | |
| MAN | TGX I 35.560 | D3876LF01 | 01.2014-09.2021 | |
| MAN | TGX I 35.560 | D3876LF04 | 01.2014-09.2021 | |
| MAN | TGX I 35.580 | D3876LF07 | 09.2016-09.2021 | |
| MAN | TGX I 35.640 | D3876LF09 | 09.2016-09.2021 | |
| MAN | TGX I 41.560 | D3876LF01 | 01.2014-09.2021 | |
| MAN | TGX I 41.580 | D3876LF07 | 09.2016-09.2021 | |
| MAN | TGX I 41.640 | D3876LF03 | 09.2014-09.2021 | |
| MAN | TGX II 18.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 18.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 18.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 18.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 18.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 18.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 24.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 24.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 24.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 24.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 24.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 24.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 26.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 26.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 26.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 26.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 26.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 26.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 26.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 26.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 26.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 26.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 26.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 26.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 26.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 26.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 26.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 26.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 26.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 26.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 26.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 26.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 26.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 28.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 28.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 28.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 33.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 33.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 33.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 33.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 33.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 33.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 33.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 33.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 33.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 35.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 35.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 35.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 41.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 41.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 41.640 | D3876LF10 | 02.2020- | |
| MAN | TGX II 42.540 | D3876LF12 | 02.2020- | |
| MAN | TGX II 42.580 | D3876LF11 | 02.2020- | |
| MAN | TGX II 42.640 | D3876LF10 | 02.2020- |
