S9597S
Kód: S9597S
Kategória: Indítómotor
Típus: Johnson Electric
Gyártó: As-pl
STANDARD LINE

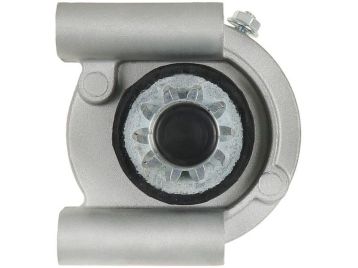

Brand new AS-PL Starter motor
B: 18.00 mm
C.1: 8.50 mm
C.2: 8.50 mm
L.1: 182.00 mm
Fogak száma: 10
Pajzsban lévő furatok száma: 2
Menetes furatok száma: 0
O.1: 67.00 mm
Teljesitmeny: 0.80 kW
Forgás: ACW
Volt: 12 v
Megegyező cikkszám
| Kód | Típus | |
| 10441030 | Alanko | |
| SAB0158 | Arrowhead | |
| STC0026 | Arrowhead | |
| UD13669S | As-pl | |
| 113017 | Cargo | |
| F032113017 | Cargo | |
| CST38131AS | Casco | |
| 20607120 | Dixie | |
| MS6001 | Dixie | |
| 3117852 | Henkel Parts | |
| 10038131AV | Itab Automotive | |
| AM117130 | John Deere | |
| AM120729 | John Deere | |
| AM130407 | John Deere | |
| AM132818 | John Deere | |
| 12-098-10 | Kohler | |
| 25-098-03 | Kohler | |
| 25-098-04 | Kohler | |
| 25-098-05 | Kohler | |
| 25-098-06 | Kohler | |
| 25-098-07 | Kohler | |
| STZ7130 | Krauf | |
| 254973 | Kuhner | |
| 5775 | Lester | |
| 5802 | Lester | |
| 88213726 | Powermax | |
| 400.078.102.200 | Psh | |
| S132.218 | Psh | |
| 20415131BN | Real | |
| 106-10144 | Robert's | |
| 106-10144NOE | Robert's | |
| 6038131.0 | Sando | |
| 5667140 | United Technologies | |
| 5667140M030SM | United Technologies | |
| 5667140MO30SM | United Technologies | |
| 6560020M030SM | United Technologies | |
| 6560020MO30SM | United Technologies | |
| 6727040M030SM | United Technologies | |
| 6727040MO30SM | United Technologies | |
| 2-2756-UT-2 | Wai / Transpo | |
| 5775N | Wai / Transpo | |
| 5802N | Wai / Transpo | |
| 71-09-5775 | Wilson | |
| 91-09-1067 | Wilson | |
| STR88227 | Woodauto | |
| WOOSTR88227 | Woodauto |
Felhasznállás
| Kocsi típus | Model | Motor kód | Évjárat | Megjegyzés |
| JOHN DEERE | LT150 | 15H.P. | - | |
| JOHN DEERE | LT160 | 16H.P. | - | |
| JOHN DEERE | Sabre 1948GV | CV20S-65560-71-19.9H.P. | - | |
| JOHN DEERE | Sabre 1948HV | CV20S-65560-71-19.9H.P. | - | |
| JOHN DEERE | Sabre 2148HV | CV22S-75529-42-21H.P. | - | |
| JOHN DEERE | Sabre 2354HV | CV23S-75531-41-23H.P. | - | |
| JOHN DEERE | STX30 | 9H.P. | 01.1989-12.1993 | |
| JOHN DEERE | STX38 | 12.5H.P. | 01.1989-12.1996 | |
| JOHN DEERE | STX38 | 13H.P. | 01.1994-12.1996 | |
| JOHN DEERE | STX38 | 14H.P. | 01.1994-12.1996 | |
| JOHN DEERE | STX46 | 14H.P. | 01.1995-12.2005 | |
| Scotts | S2348 | 23H.P. | 01.2000-12.2001 |
